Operating instructions

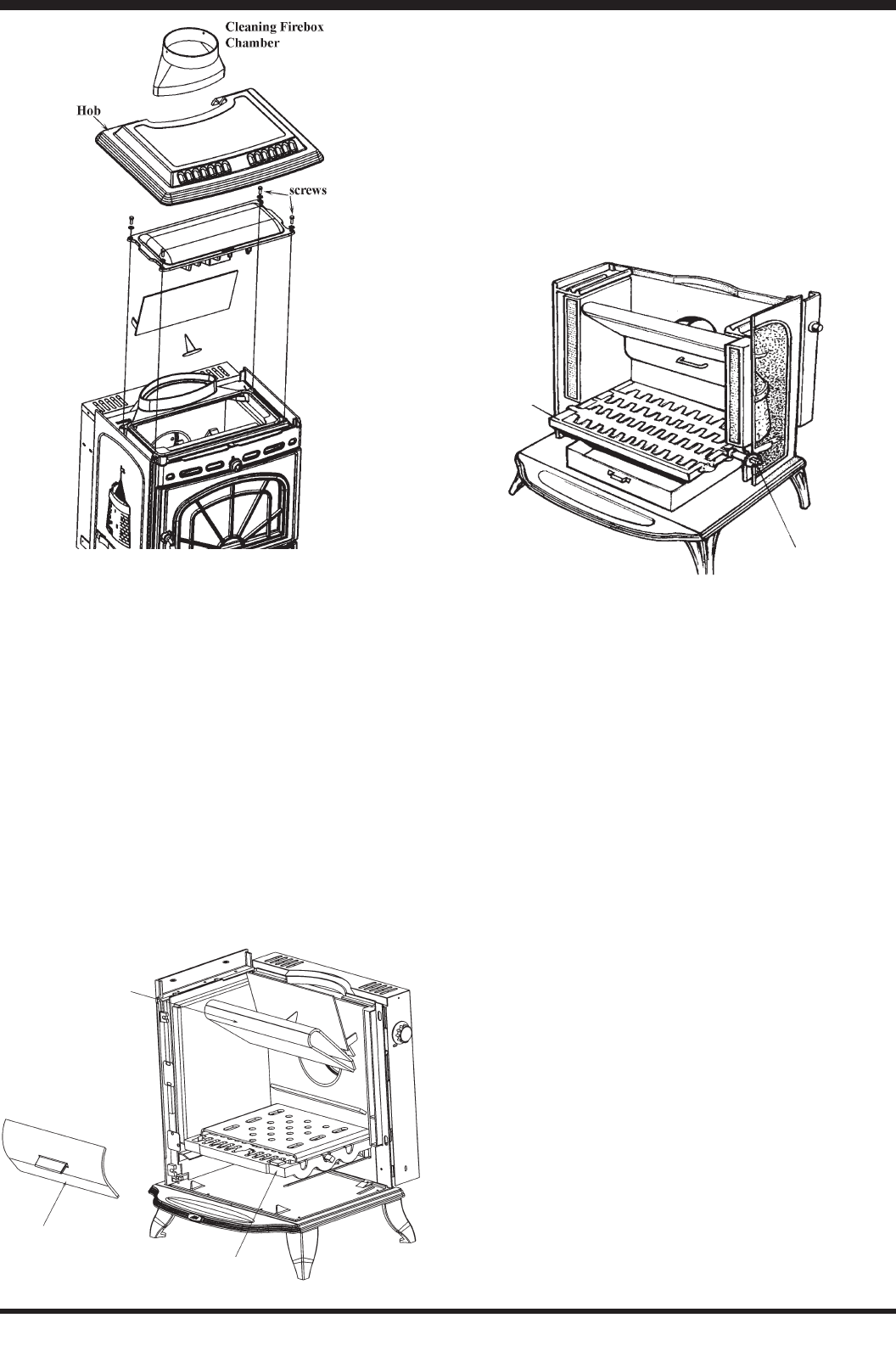

Fig. 20
1. Lift off hob.
2. Remove 4 brass screws.
3. Lift off fire box cover.
4. Clean out fire box chamber.
5. Replace all parts in reverse order.
TO CLEAN CHIMNEY BACK OUTLET
Remove baffle underneath the boiler cross flow
chamber by lifting it upwards and pulling it outwards
and insert cleaning brush. Replace baffle before
lighting fire.
When fitted correctly the baffle should fall forward to
close onto the bottom of the boiler. The appliance
will not function correctly with this baffle misaligned
or missing.
13
Fig.21
Removable Baffle
Grate
Boiler
Fig.22
TO REPLACE ROCKER OPERATING SLEEVE
1. Remove the 3 fire bars.
2. Lift the grate at the left hand end and remove it.
3. Withdraw the Rocker Operating Sleeve from
under the boiler at the right hand side.
4. Replace with new sleeve and sealing washer.
5. Replace grate and make sure that the square
shank on the centre fire bar engages with the
socket in the sleeve.
Rocker Operating Sleeve
Grate
RADIATION SURFACE
Heating surface only 23.87 Sq. M (257 sq. ft.)
Heating plus Domestic Hot Water 18.58 Sq. M. (200
sq.ft.)
FIRE SAFETY
To provide reasonable fire safety, the following
should be given serious consideration.
1. Do not over fire the stove.
2. Over-firing will also damage painted or enamel
finish.
3. Install a smoke detector in the room.
4. A conveniently located class A fire extinguisher
to contend with small fires resulting from burn-
ing embers.
5. A practical evacuation plan.
6. A plan to deal with a chimney fire as follows:-
(a) Notify the fire department.
(b) Prepare occupants for immediate evacua-
tion.
(c) Close all openings into the stove.
(d) While awaiting the fire department watch for
ignition to adjacent combustibles from over
heated flue pipe or from embers or sparks
from the chimney.
