Operating instructions

15
ITEMS
1. Top Flue Outlet
2. Leg (Short)
3. Top Flue Blanking Plate
4. Hob
5. Air Wash Control Knob
6. Flue Blanking Plate
7. Right Hand Side Panel
8. Left Hand Side Panel
9. Front Frame
10. Base
11. Ashtray
12. Top Shroud
13. RH Back Shroud
14. Gasket Clamp Plate
15. Top Latch Socket Cover Plate
16. Lower Latch Socket Cover Plate
17. LH Back Shroud
18. Boiler Assembly

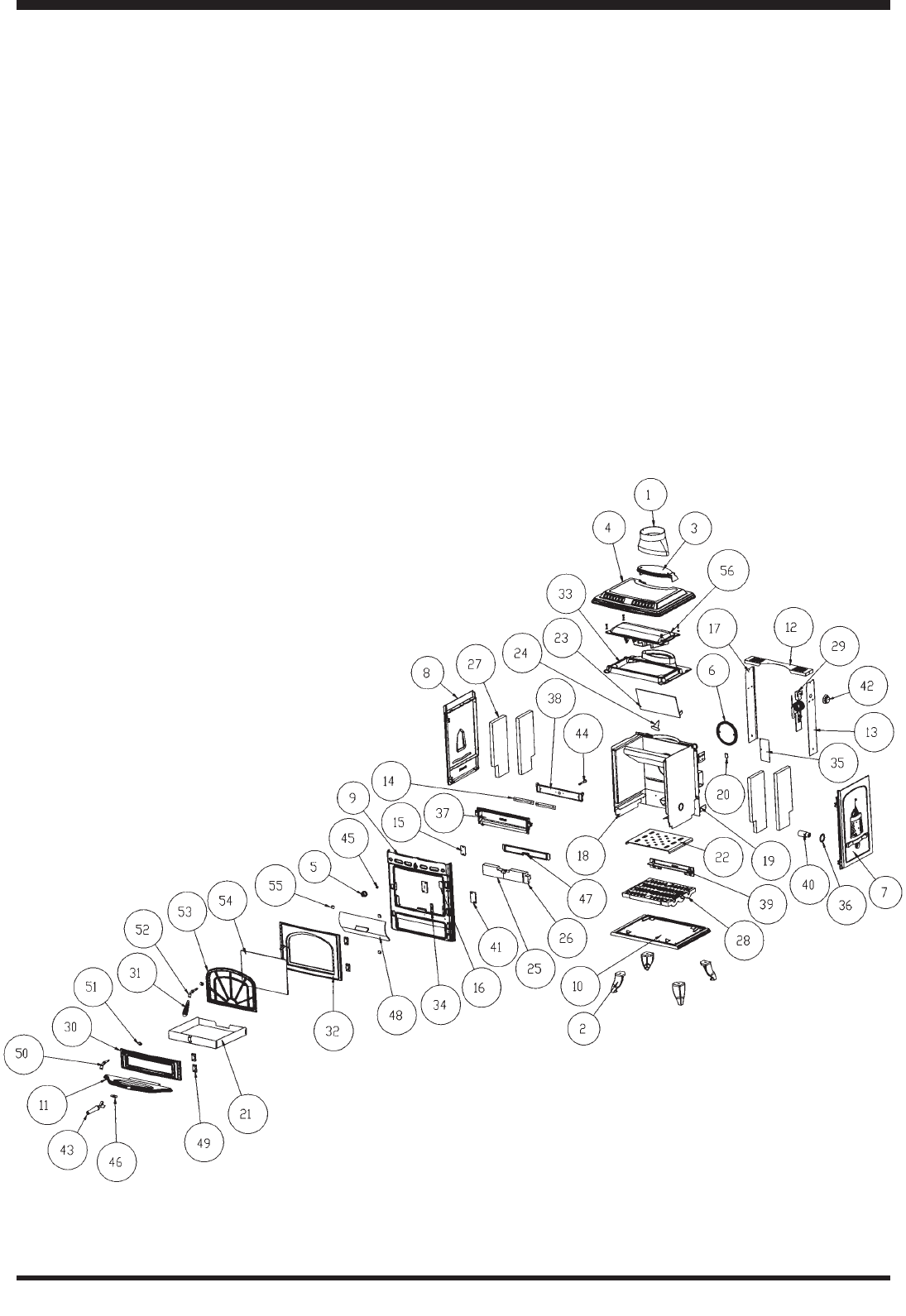

EXPLODED VIEW
38. Primary Air Shutter
39. Grate Support
40. Shaker Barrell
41. Fire Fence Retainer
42. Air Control Knob
43. Operation Tool
44. Primary Air Control Shaft
45. Spacer to Door Handle
46. Aga Stove Badge
47. Fire Fence
48. Boiler Cleaning Plate
49. 2” Hinge
50. Door Handle Axle
51. Door Latch
52. Door Handle Axle
53. Door Grill
54. Glass
55. Door glass Clip
56. Access Plate
19. Bottom-Shroud Bracket
20. Rating Plate Bracket
21. Ashpan
22. Fire Bed
23. Flue Side Baffle
24. Baffle Support
25. Lefthand Front Brick
26. Righthand Front Brick
27. Side Insulation
28. Grate Assembly
29. Thermostat Assembly
30. Ashpit Door Assembly
31. Min Spring Handle
32. Fire Door Assembly
33. Inner Top
34. Serial Number Plate
35. Data Plaque
36. Gasket 2”
37. Primary Air Box
