190 Agilent E5505A User’s Guide
6
Absolute Measurement Examples

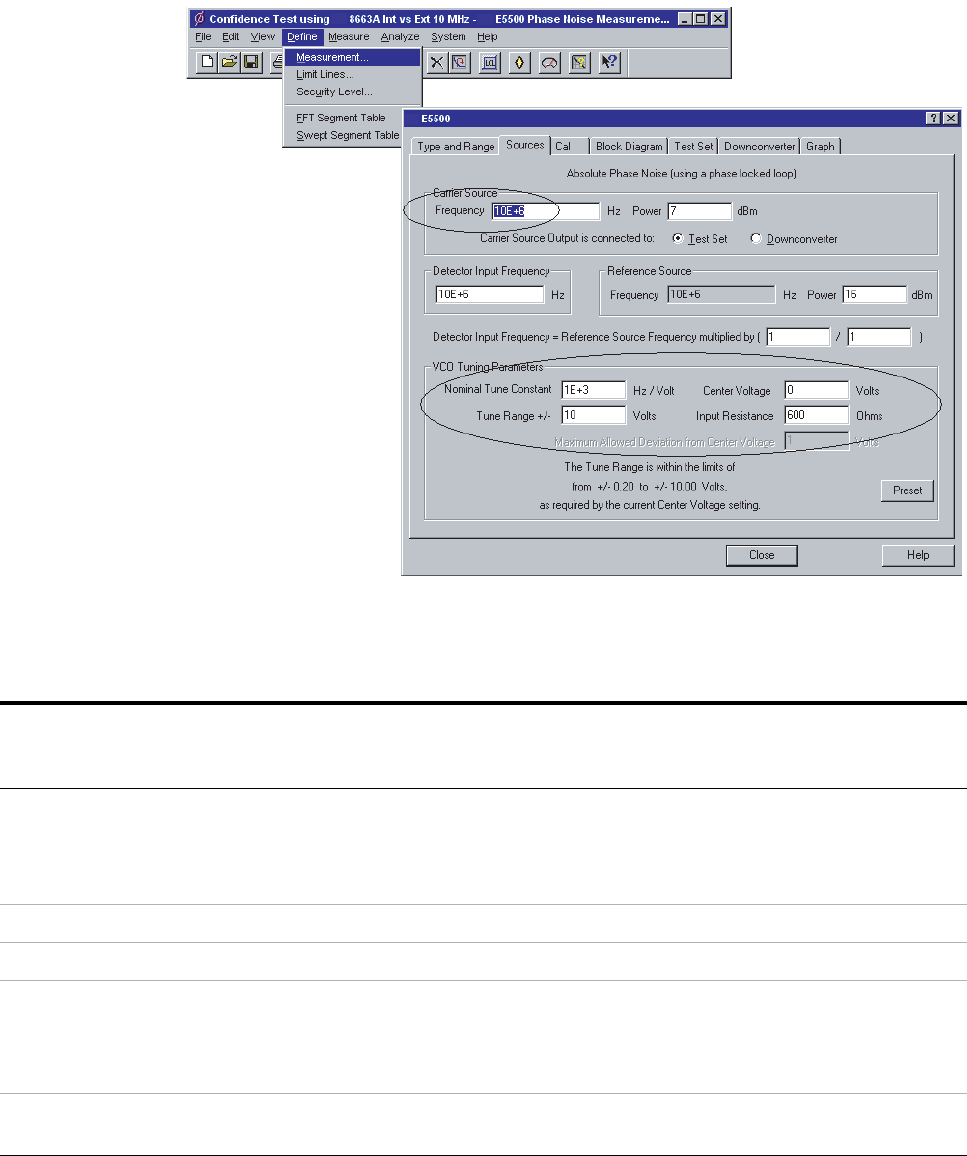

Figure 133 Enter source information
Table 26 Tuning characteristics for various sources
VCO Source Carrier
Freq.
Tuning Constant
(Hz/V)
Center
Voltage
(V)
Voltage Tuning
Range (±V)
Input
Resistance
(Ω)
Tuning
Calibration
Method
Agilent 8662/3A
EFC
DCFM
υ
0
5 E – 9 x υ
0
FM Deviation
0
0
10
10
1E + 6
1 K (8662)
600 (8663)
Measure
Compute
Compute
Agilent 8642A/B FM Deviation 0 10 600 Compute
Agilent 8644B FM Deviation 0 10 600 Compute
Other Signal
Generator
DCFM Calibrated for
±1V
FM Deviation 0 10 R
in
Compute
Other User VCO
Source
Estimated within a
factor of 2
–10 to
+10
1 E + 6 Measure
e5505a_user_enter_source_info
24 Jun 04 rev 3
