242 Agilent E5505A User’s Guide
8
Residual Measurement Examples
7
The system will now measure the noise data.
The system can now run the measurement. The segment data will be displayed
on the computer screen as the data is taken until all segments have been taken
over the entire range you specified in the Measurement definition’s Type and
Range.
When the measurement is complete
When the measurement is complete, refer to Chapter 14, “Evaluating Your
Measurement Results for help in evaluating your measurement results.
Figure 177 on page 243 shows a typical phase noise curve for an RF Amplifier.

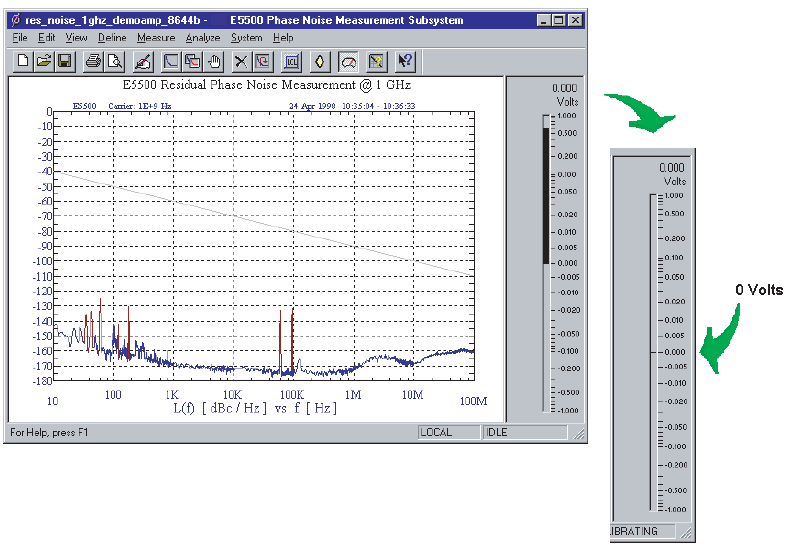

Figure 176 Adjust phase shifter until meter indicates 0 volts
e5505a_user_adjust_phase_shift
25 Jun 04 rev 3
