294 Agilent E5505A User’s Guide

AM Noise Measurement Fundamentals

Method 1, example 2

Advantages

• Easy method of calibrating the measurement system.

• Will measure DUT without modulation capability.

• Requires little additional equipment: only a voltmeter or an oscilloscope.

• Fastest method of calibration. If the same power levels are always at the AM

detector, as in the case of leveled outputs, the AM detector sensitivity will

always be essentially the same.

• Measures the AM detector gain in the actual measurement configuration.

Super-quick method of estimating the equivalent phase detector constant.

Disadvantages

• Has only moderate accuracy compared to the other calibration methods.

Procedure

Using Figure 225 and Figure 226, connect circuit and tighten all

connections. If the N5500A Option 001 or N5507A is available, use one of

the connection diagrams described in “AM noise measurement block

diagrams" on page 287.

Measure the power which will be applied to the AM detector. It must be

between 0 and +23 dBm.

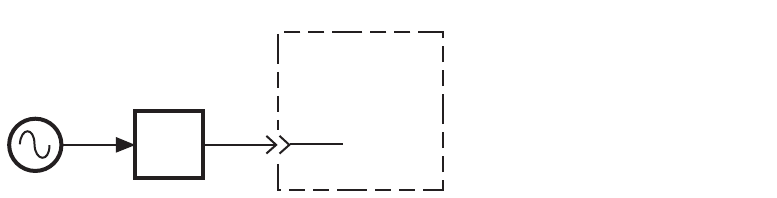

Figure 225 Phase detector constant AM noise setup (method 1, example 2)

DUT

AM detector

Noise

input

Test set
