312 Agilent E5505A User’s Guide
12
AM Noise Measurement Examples
Making the measurement
5
Press the Continue button when you are ready to make the measurement.
• The system is now ready to make the measurement. The measurement
results are updated on the computer screen after each frequency segment
has been measured.
For more information about various calibration techniques, refer to
Chapter 11, “AM Noise Measurement Fundamentals.
When the measurement is complete
When the measurement is complete, refer to Chapter 14, “Evaluating Your
Measurement Results”for help with the results. Figure 248 shows a typical AM
noise curve.

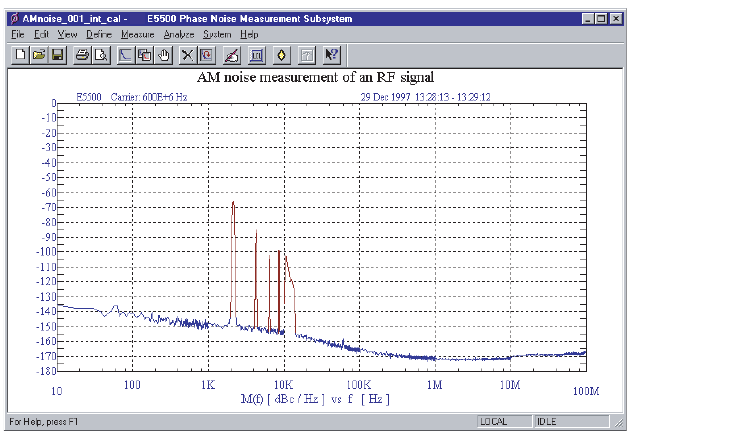

Figure 248 Typical AM noise curve
