362 Agilent E5505A User’s Guide

Reference Graphs and Tables

Approximate System Noise Floor vs. R Port Signal Level

The sensitivity of the phase noise measurement system can be improved by

increasing the signal power at the R input port (Signal Input) of the phase

detector in the test set. Figure 288 illustrates the approximate noise floor of

the N5500A test set for a range of R input port signal levels from –15 dBm to

+15 dBm. These estimates of sensitivity assume the signal level at the L port is

appropriate for either the microwave or the RF mixer that is used (+7 dBm or

+15 dBm, respectively). The approximate phase detector calibration constant

that results from the input signal level at the R port is shown on the right side

of the graph.

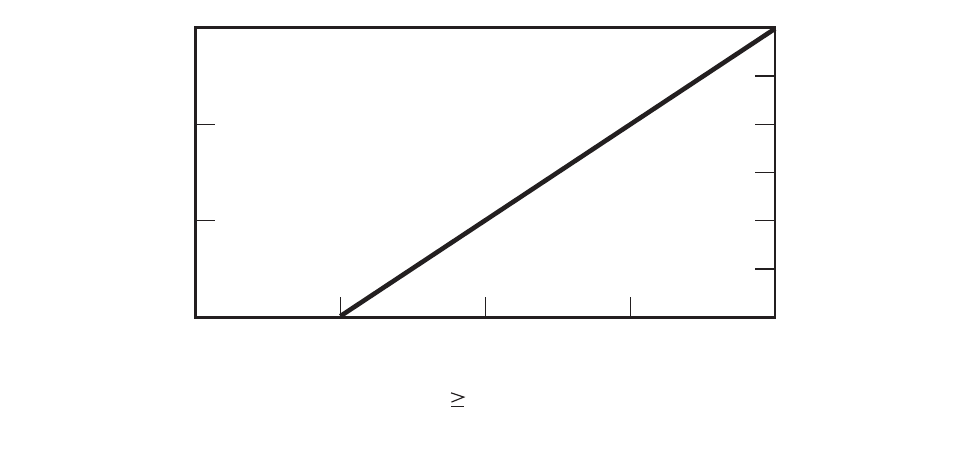

Figure 288 Noise floor for R input port

-140 -160 -170 -180-150

Approximate phase noise floor (dBc/Hz)

f 10kHz

R Port signal level (dBm)

Detector constant

Kφ (V/rad)

-15

+15

-5

.02

.035

.06

.11

.35

E5505a_phase_det_sensitivity

27 Feb 04 rev 1
