User`s guide

Setting Up the Oscilloscope
To connect power
1-12
3 Connect the power cord to the rear of the oscilloscope, then to a
suitable ac voltage source (100 to 240 VAC ±10%, 47 to 63 Hz all models
for the 8000A series and 100 to 240 VAC ±10%, 47 to 63 Hz for the 80000B
series)
Maximum power dissipation: 80000B series is 550 W and 8000A series is 440 W.

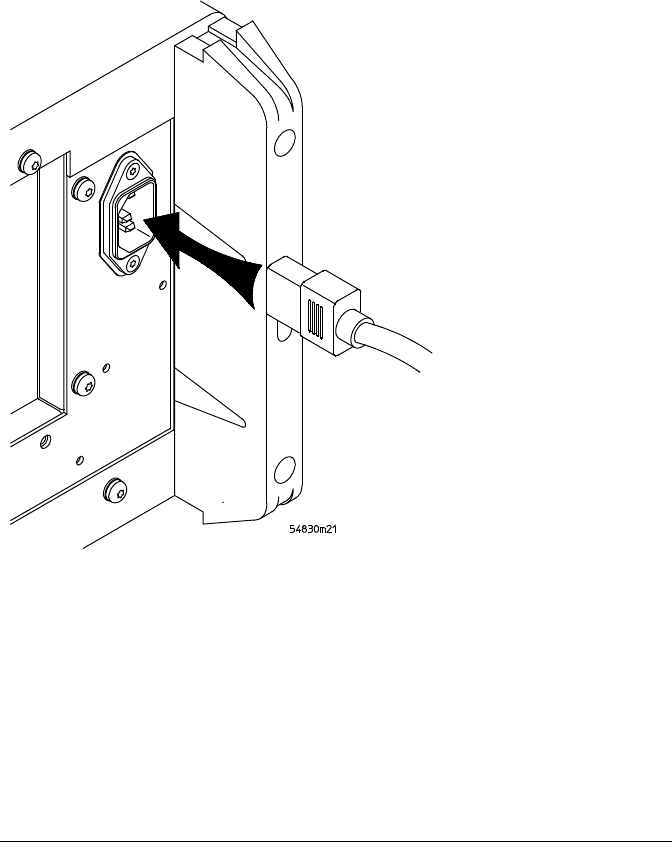

Figure 1-4
Infiniium Oscilloscope Power Cord Connection
The oscilloscope power supply automatically adjusts for line input voltages in
the range 100 to 240 VAC. Therefore, you do not need to adjust an input line
voltage setting. The line cord provided is matched by Agilent Technologies to
the country of origin of the order.
4 Ensure that you have the correct line cord. See table 1-4.
