User`s guide

Setting Up the Oscilloscope
To verify basic operation for the 80000B series oscilloscope
1-29
To verify basic operation for the 80000B series
oscilloscope
1 Connect one end of the calibration cable using SMA to precision BNC
adaptors to channel 1.
2 Connect the other end of the calibration cable using the SMA to
precision BNC adaptor to the Aux Out connecter on the front panel.

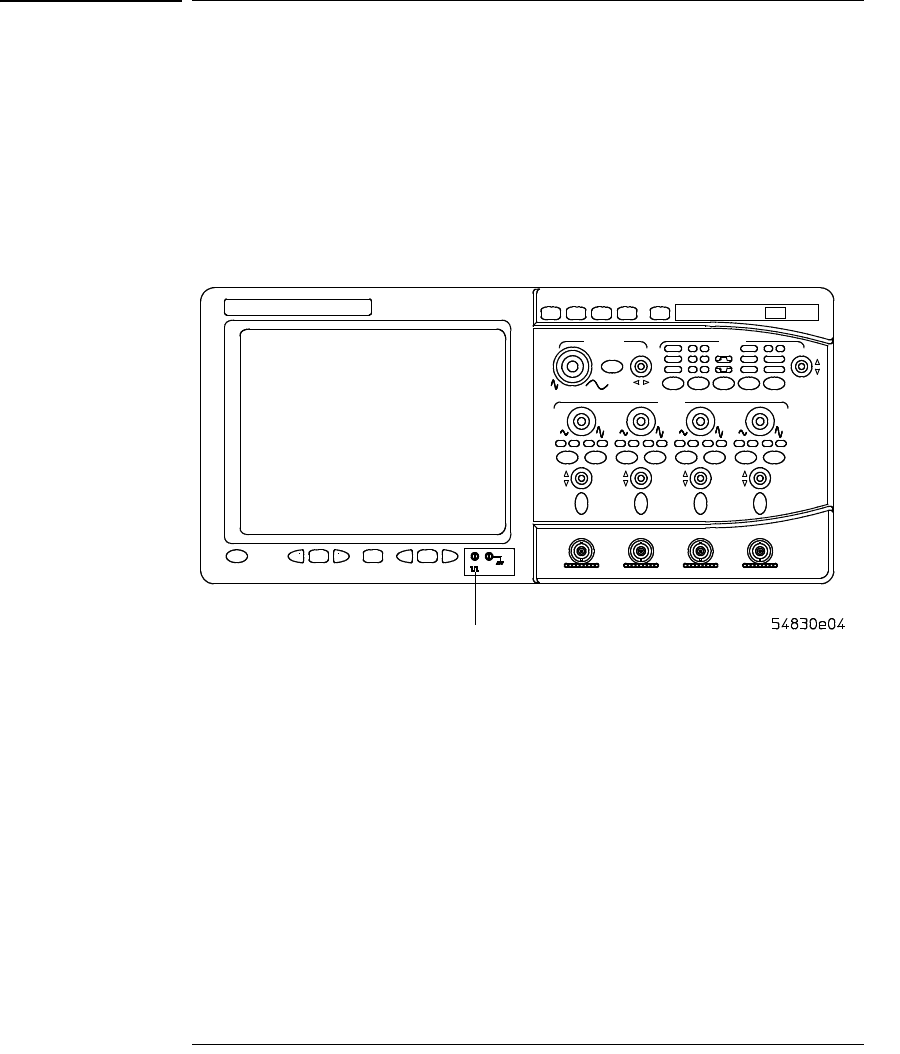

Figure 1-17
Verifying Basic Oscilloscope Operation for 80000B Series Oscilloscopes.
3 Press the Default Setup key on the front panel.
The display will pause momentarily while the oscilloscope is configured to its
default settings.
4 Press the Autoscale key on the front panel.
The display will pause momentarily while the oscilloscope adjusts the sweep
speed and vertical scale. You should then see a square wave with peak-to-peak
amplitude of approximately 5 divisions and a shows about four cycles on screen.
If you do not see the waveform, ensure your power source is adequate, the
oscilloscope is properly powered-on, and the probe is connected securely to the
front-panel channel input BNC and to the probe calibration output.
5 Move the mouse around the mouse surface and verify that the on screen
pointer follows moves with the mouse movement.
Calibration
Output
