Power Meter Operation
Saving and Recalling Power Meter Configurations
Agilent E4418B User’s Guide 2-61
Saving and Recalling Power Meter Configurations
To reduce repeated setup sequences, up to ten power meter configurations
can be stored in the power meter’s non-volatile memory. The GP-IB
address and command set, the data stored in the sensor calibration tables
and the zeroing and calibration data are not stored by a preset. The
calibration table selected is not affected.
Power meter configurations are saved and recalled with the
hardkey.

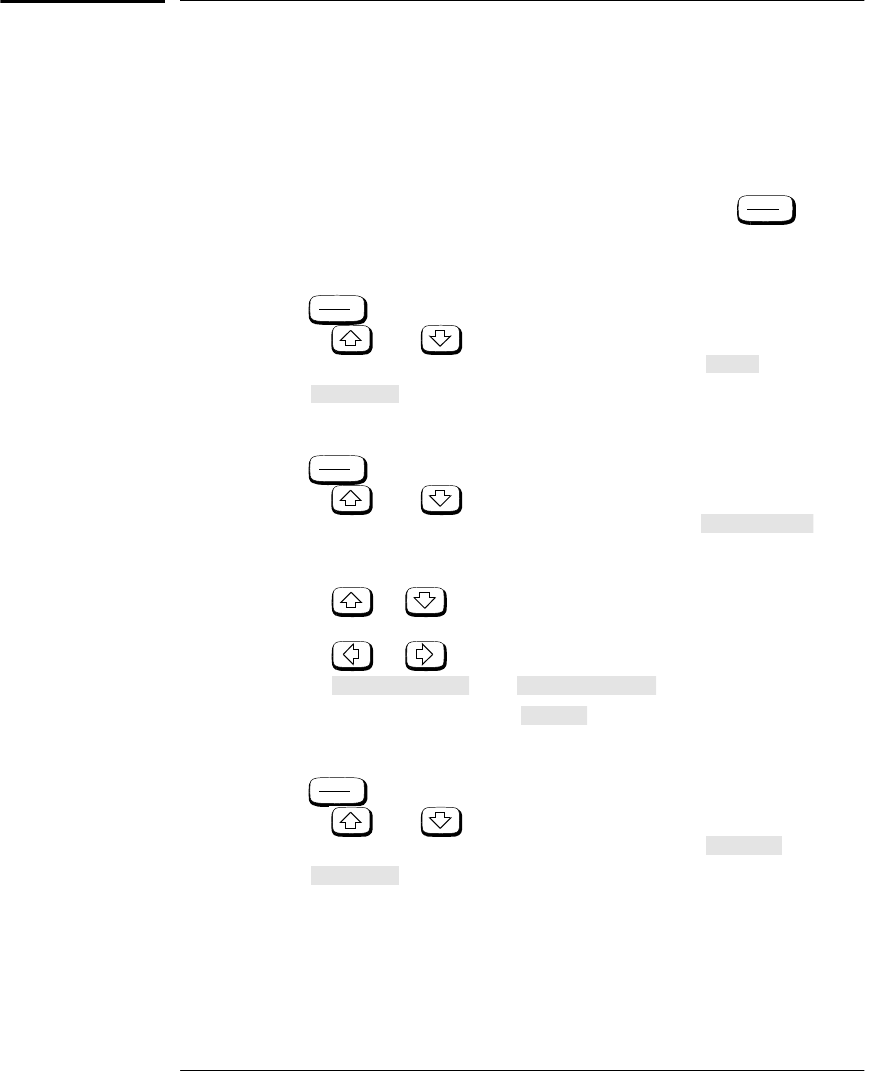

To save the current measurement setup:
1. Press .
2. Use the and hardkeys to scroll through the displayed
files. When the required file is highlighted press .
3. Press .
If you require to modify the name of a file:
1. Press .
2. Use the and hardkeys to scroll through the displayed
files. When the required file is highlighted press . The
power meter displays the file name in a pop up window. Modify
this name (see below) until the desired name is displayed.
■ Use or to modify the character on which the cursor
is currently positioned.
■ Use or to move to other characters.
■ Use and as required.
3. To confirm your choice press .
To recall a measurement setup:
1. Press .
2. Use the and hardkeys to scroll through the displayed
files. When the required file is highlighted press .
3. Press .
Save
Recall
Save
Recall
Save
Confirm
Save
Recall
Edit Name
Insert Char Delete Char
Enter
Save
Recall
Recall
Confirm
