1Overview
6 N9340A User’s Guide

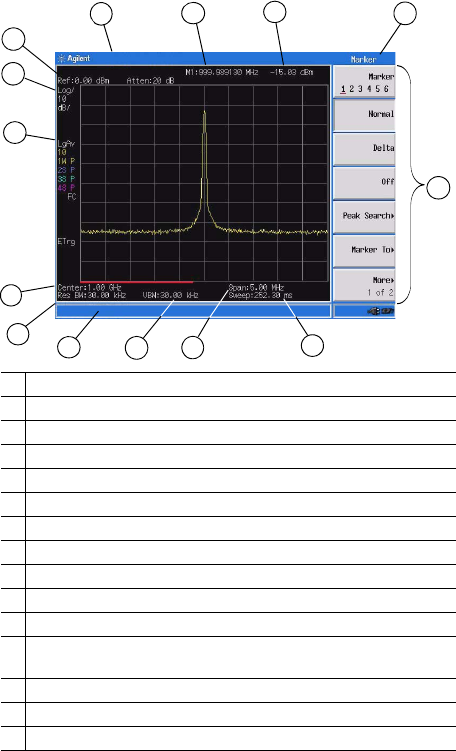

Display Annotations
Description Associated Function Key
1 Time and Date [SYS] > {Setting} > {General}
2 Reference Level [AMPTD]
3 Amplitude Scale [AMPTD]
4 Detector Mode [TRACE] > {More} > {Detector}
5 Center Frequency [FREQ] > {Center Freq}
6 Resolution Bandwidth [BW/SWP] > {RBW}
7 Display Status Line Displays status and error messages.
8 Video Bandwidth [BW/SWP] > {VBW}
9Frequency Span [SPAN]
10 Sweep Time [BW/SWP] > {Sweep Time}
11 Key Menu See key label description in the key ref-
erence for more information.
12 Key Menu Title Refers to the current activated function
13 Marker Amplitude [Marker]
14 Marker Frequency [Marker]
1
2
3
4
5
6
7
8
9
10
12
11
14
13
15:44:03 03,10,08
