2 Making Measurements
Measuring DC Voltage
34 U1231A/U1232A/U1233A User’s Guide
Measuring DC Voltage
Set up your multimeter to measure DC voltage as shown in
Figure 2- 4. Probe the test points and read the display.

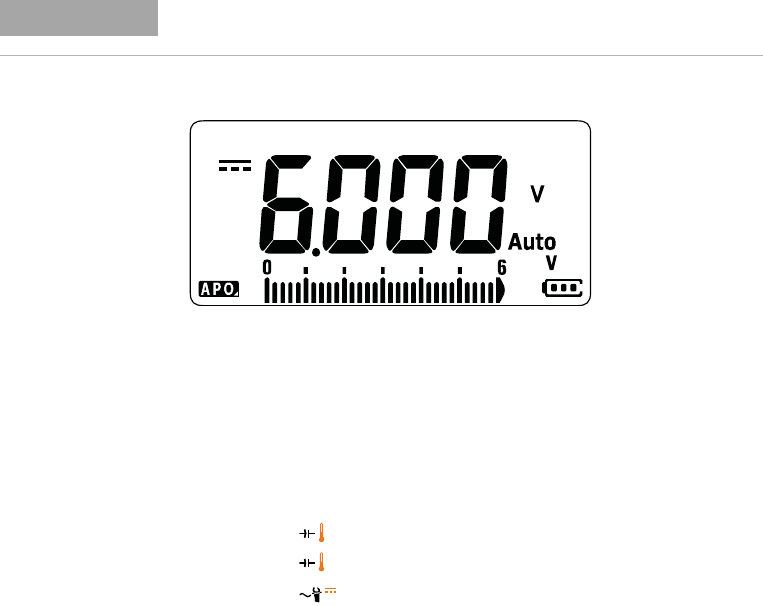

Figure 2-3 DC voltage display
Measuring AC/DC mV
You can choose to set the multimeter to measure AC or DC
mV at the rotary positions shown below.
• U1233A:
• U1232A:
• U1231A:
Use the Setup menu to enable AC/DC mV measurements. See
“Enable the AC/DC mV measurement” on page 98 to learn
more.
NOTE
This multimeter displays DC voltage values as well as their polarity.
Negative DC voltages will return a negative sign on the left of the display.
AUX
AUX
Hz
