User`s manual

2. I ns tal lat i on of CP 08 RD co ntr oll er

For a detailed description of installing and operating a CP08RD incl. recommended operation mode settings see the

following document:

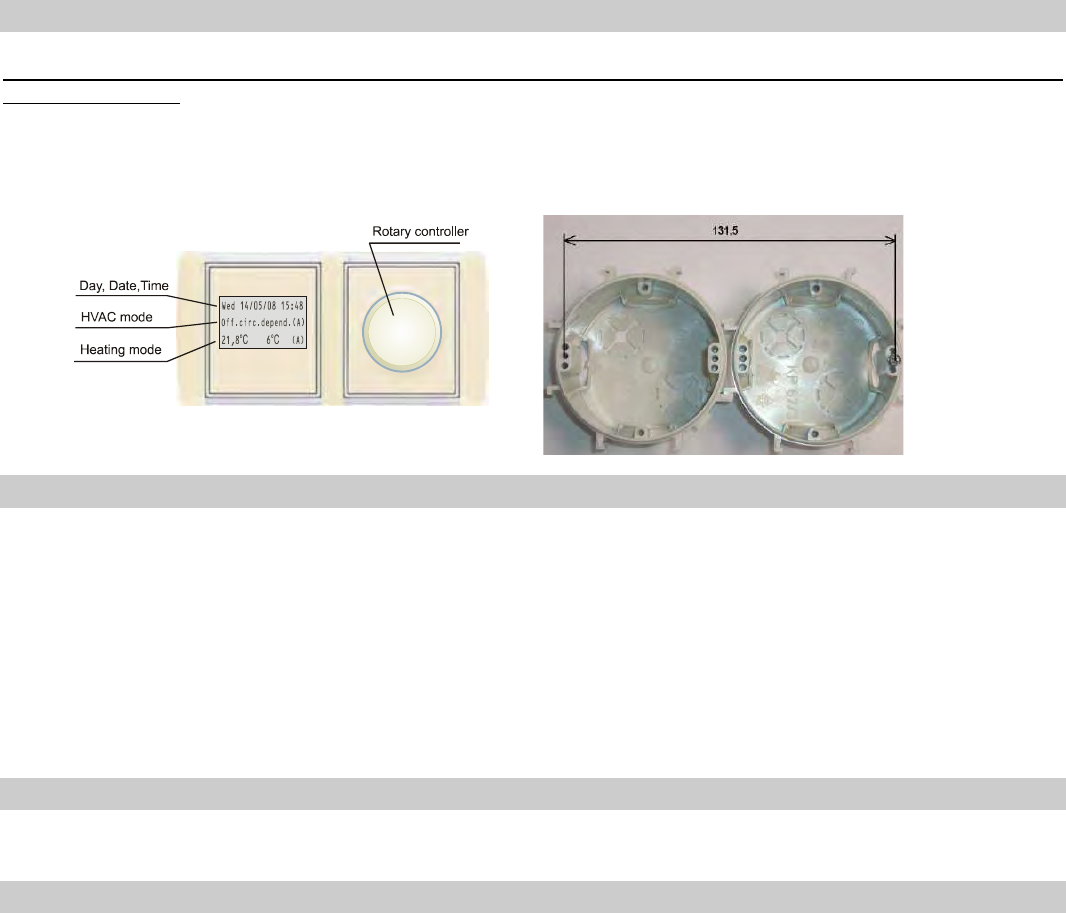

CP-08 RD CONTROLLER

FOR DUPLEXVENT R_3 HVAC UNITS

The User’s Manual is supplied with the controller.

The controller is installed in a twin-box set in the wall of the building

3. Com mis sio ning

DUPLEXVENT R_3 units may only be put into operation by authorized service technician, who is required to fill out and

hand over a signed “COMMISSIONING REPORT”. A warranty for DUPLEXVENT R_3 units is provided on the basis of

that report.

Spare parts, repairs

We recommend commissioning all repairs of the controllers, within or after their warranty period, to a professional

servicing firm or trained service technician. Please contact the manufacturer for details regarding the nearest service

point.

C) Fun cti o ns

For the operation modes of DUPLEXVENT R_3 hot air units see Appendix E.

1. Bas ic f uncti ons

Recirculation air heati ng

Recirculation air is filtered inside the unit, heated in the hot water heat recovery exchanger and transported by means of

a low-speed fan into the various diffusers in the rooms.

The integrated heating facility turns on when all the following conditions are met:

1) The unit is ON (medium or maximum performance level)

2) It is set to Heating Season (HS)

3) The room thermostat is ON - a request for heating from the CP 08 RD controller

4) Temperature behind the heater is lower than the maximum temperature set on the control module board

(trimmer P1).

Heating itself starts depending on a heating source installed (a boiler, an auxiliary pump etc. are turned on).

Ex haust air extr action

It is intended for independent extraction from the toilet, bathroom and kitchen, i.e. areas where recirculation is not

allowed. Extraction can be set manually (mode 1 or 2) or it starts automatically after lights in the toilet or bathroom are

turned on or a command comes from the kitchen, regardless of the manual setting of the controller. Various options

differ depending on the installation location - for information please contact the installation firm.

Starting with start-up delay and run-down times

To start extraction from the bathroom and toilet inputs D1, D2 and D3 with delay start-up and run-down times. These

start-up delay and run-down times can be set within a range - 0-5 minutes for start-up (1 minute by default) and 1-10 for
