Installation Instructions

BAFFLES
(2) INLET/OUTLET
CAST IRON HUBS
(3) HUBS (VENTS)
THIS DRAWING IS THE SOLE PROPERTY OF AK INDUSTRIES INC.
AK INDUSTRIES

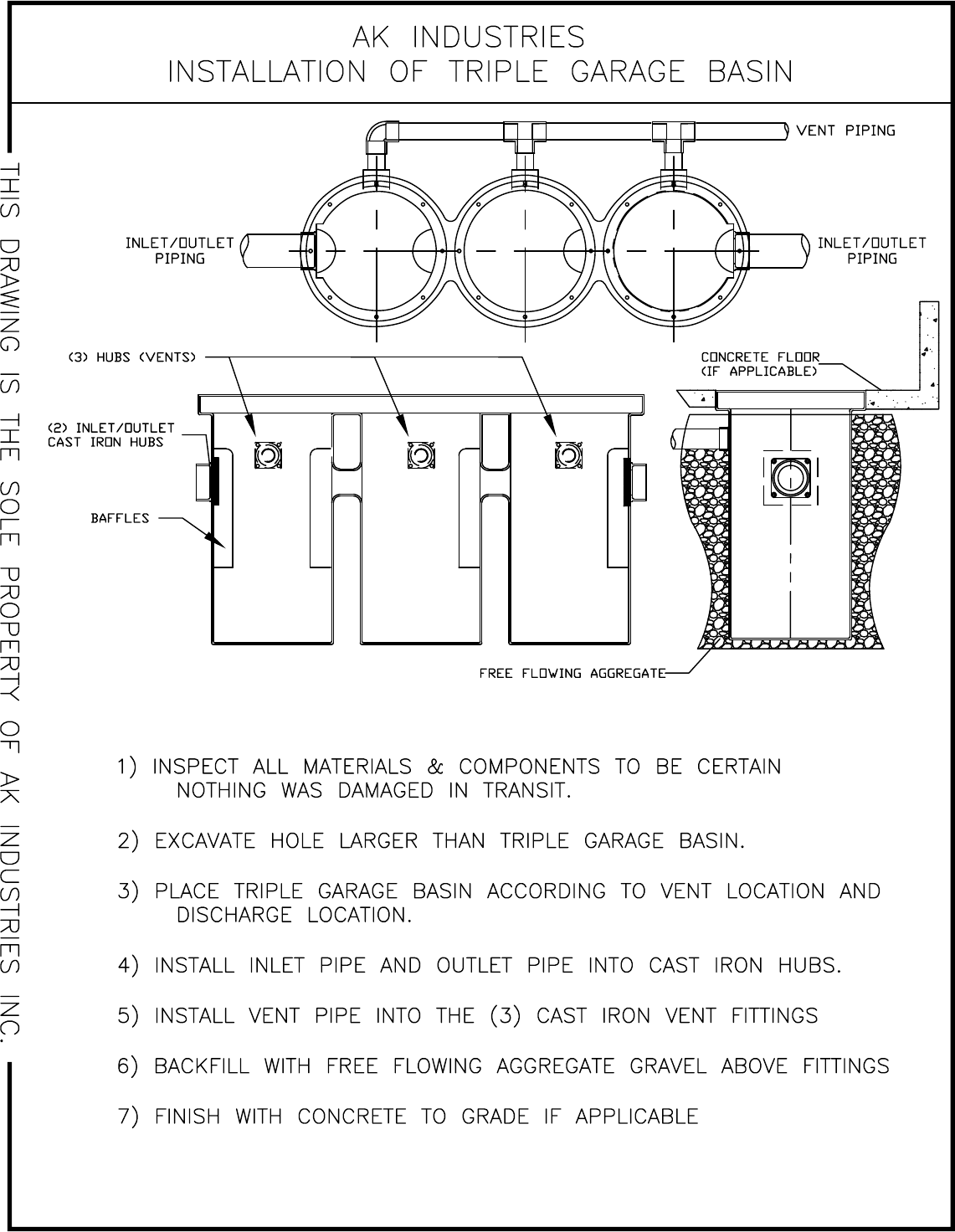

INSTALLATION OF TRIPLE GARAGE BASIN
1) INSPECT ALL MATERIALS & COMPONENTS TO BE CERTAIN
NOTHING WAS DAMAGED IN TRANSIT.
2) EXCAVATE HOLE LARGER THAN TRIPLE GARAGE BASIN.
3) PLACE TRIPLE GARAGE BASIN ACCORDING TO VENT LOCATION AND
DISCHARGE LOCATION.
4) INSTALL INLET PIPE AND OUTLET PIPE INTO CAST IRON HUBS.
5) INSTALL VENT PIPE INTO THE (3) CAST IRON VENT FITTINGS
6) BACKFILL WITH FREE FLOWING AGGREGATE GRAVEL ABOVE FITTINGS
7) FINISH WITH CONCRETE TO GRADE IF APPLICABLE
VENT PIPING
INLET/OUTLET
PIPING
INLET/OUTLET
PIPING
FREE FLOWING AGGREGATE
CONCRETE FLOOR
(IF APPLICABLE)
