User Guide

E - 14
Setup
(continued to next page)(continued to next page)
(continued to next page)(continued to next page)
(continued to next page)

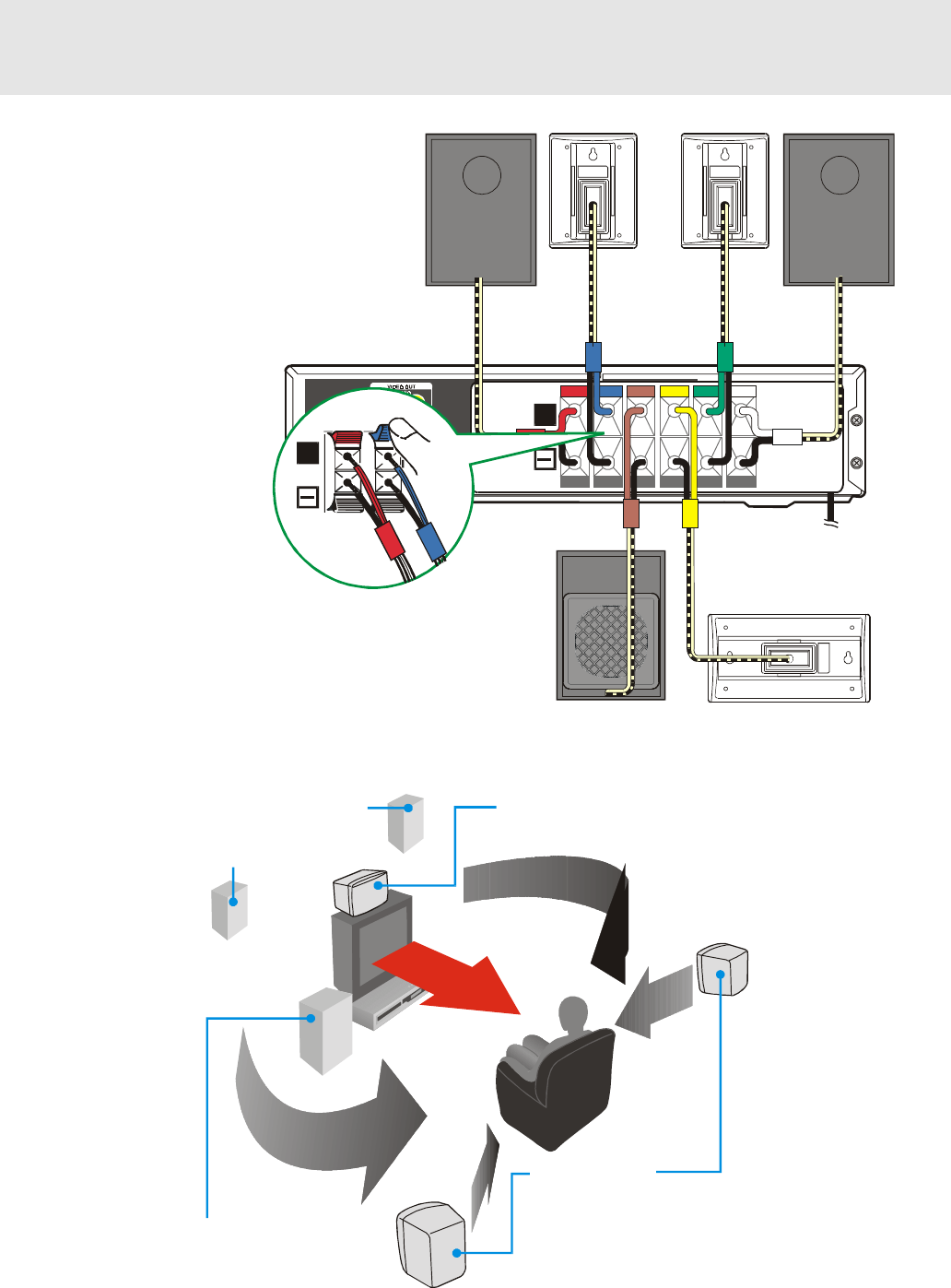

D.Connecting the speakers &
subwoofer
The speaker cords have been color-coded to
simplify connection. Just plug the POSITIVE
(+) and NEGATIVE (-) ends of each speaker
wire into the corresponding jacks on the rear
of the Unit, matching the color tube on the end
of the speaker wire to the color-coded
connector.
E. Positioning the speakers and subwoofer
CENTER
PlaceonthetopoforbelowtheTV.
REAR SPEAKERS
Place right beside or slightly behind
your listening position, and a little
higher than your ears.
SUBWOOFER
Can be placed anywhere.
FRONT SPEAKERS
Place on both sides of
the TV, equal distances
apart.
FRONT (RIGHT)
REAR (RIGHT) REAR (LEFT) FRONT (LEFT)
To wall outlet
SUBWOOFER
CENTER
IMP. 6 ohm
RIGHT LEFT
IM P. 6 oh m
IM P. 3 oh m
FRONT FRONTREAR REAR
SUBWOOFER CENTER
+
+
