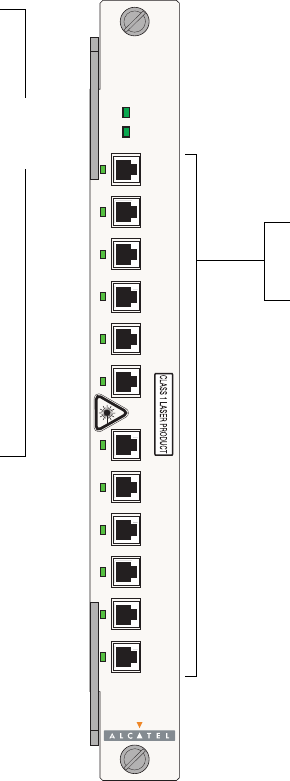

OS7-ENI-FM12 Front Panel
OS7-ENI-FM12
OK1
OK2
1
2
12
11
10
9
8
7
6
5
4
3
Module Status LEDs
OK1. Hardware Status. Displays solid
green when powered on and the ENI has
passed hardware diagnostic tests. Displays
solid amber when powered on and the ENI
has failed hardware diagnostic tests.
OK2. Software Status. Blinks green when
the ENI is operational and has successfully
loaded software. Displays solid amber
when powered on and the ENI has failed to
load software.
Ethernet Port LEDs
Each fiber-based Ethernet port has a corre-
sponding LED. This LED indicates the link
and activity status for each Ethernet port.
The LED displays green when a valid
Ethernet cable connection exists. Flashes
green as data is transmitted or received on
the port.
Ethernet Ports
The OS7-ENI-FM12 module provides 12 100BaseFX
Ethernet ports. The ports use MT-RJ connectors.
Module
Status
LEDs
Note
Refer to your Hardware Users Guide for information
on proper handling of MT-RJ connectors and fiber-
optic cable.
