User Guide

56 Hardware Basics March 2005

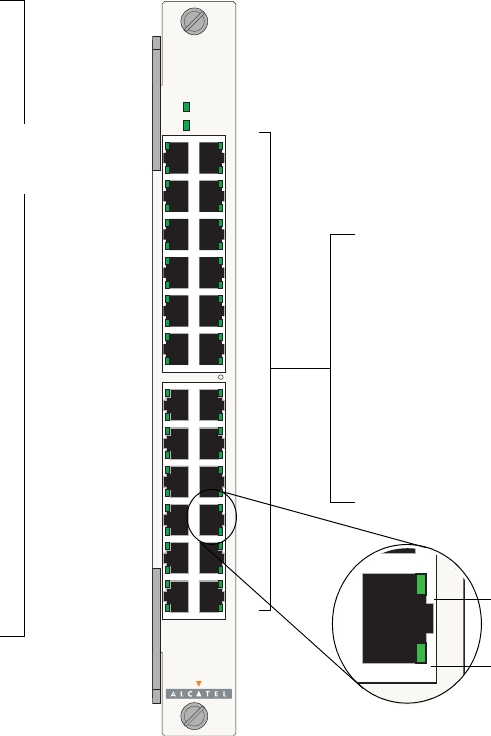

OS7-ENI-P24 Front Panel
OS7-ENI-P24
1x 3x 5x 7x 9x 11x 13x 15x 17x 19x 21x 23x
OK1
OK2
24x2x
OK1. Hardware Status. Displays solid
green when powered on and the ENI has
passed hardware diagnostic tests. Displays
solid amber when powered on and the ENI
has failed hardware diagnostic tests.
OK2. Software Status. Blinks green when
the ENI is operational and has successfully
loaded software. Displays solid amber
when powered on and the ENI has failed to
load software.
Power on LAN Ethernet Ports
The OS7-ENI-P24 module provides 24 Ethernet ports;
these ports can be used in conjunction with Alcatel’s
Power over Ethernet (PoE) feature. PoE provides
inline power to connected devices. Refer to “Managing
Power over Ethernet (PoE)” in the Hardware Users
Guide for detailed information on the feature.
The PoE ports are twisted-pair and are individually
configurable as 10BaseT or 100BaseTX. The ports use
RJ-45 connectors.
Module
Status
LEDs
Ethernet Port Link Status LEDs
Each Ethernet port has a built-in corre-
sponding status LED located at the top of
the port. This LED indicates the link and
activity status for each Ethernet port. The
LED displays green when a valid Ethernet
cable connection exists. Flashes green as
data is transmitted or received on the port.
Ethernet Port Power LEDs
Each Ethernet port has a built-in corre-
sponding power port LED located at the
bottom of the port. This LED displays solid
green when power is properly supplied to
the port. Flashes green when there is an
overload or short. And this LED is off if
there is a power failure.
Ethernet Port
Link Status LED
Port Power LED
