March 2005 OmniSwitch 7700/7800 3
OmniSwitch 7800
The OmniSwitch 7800 is an 18-slot switch designed for the
medium enterprise core or large wiring closet. The
OmniSwitch 7800 offers up to 384 10/100 Ethernet ports.
Alternatively, it can be equipped with up to 192 Gigabit Ether-
net ports.

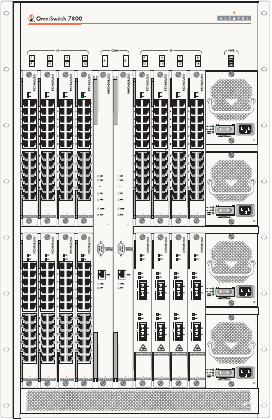

The OmniSwitch 7800 chassis contains the following major
components:
• 16 Network Interface (NI) module slots
• Two Chassis Management Module (CMM) slots
• Power supply bay holding up to four power supplies
• Fan tray with three fans
