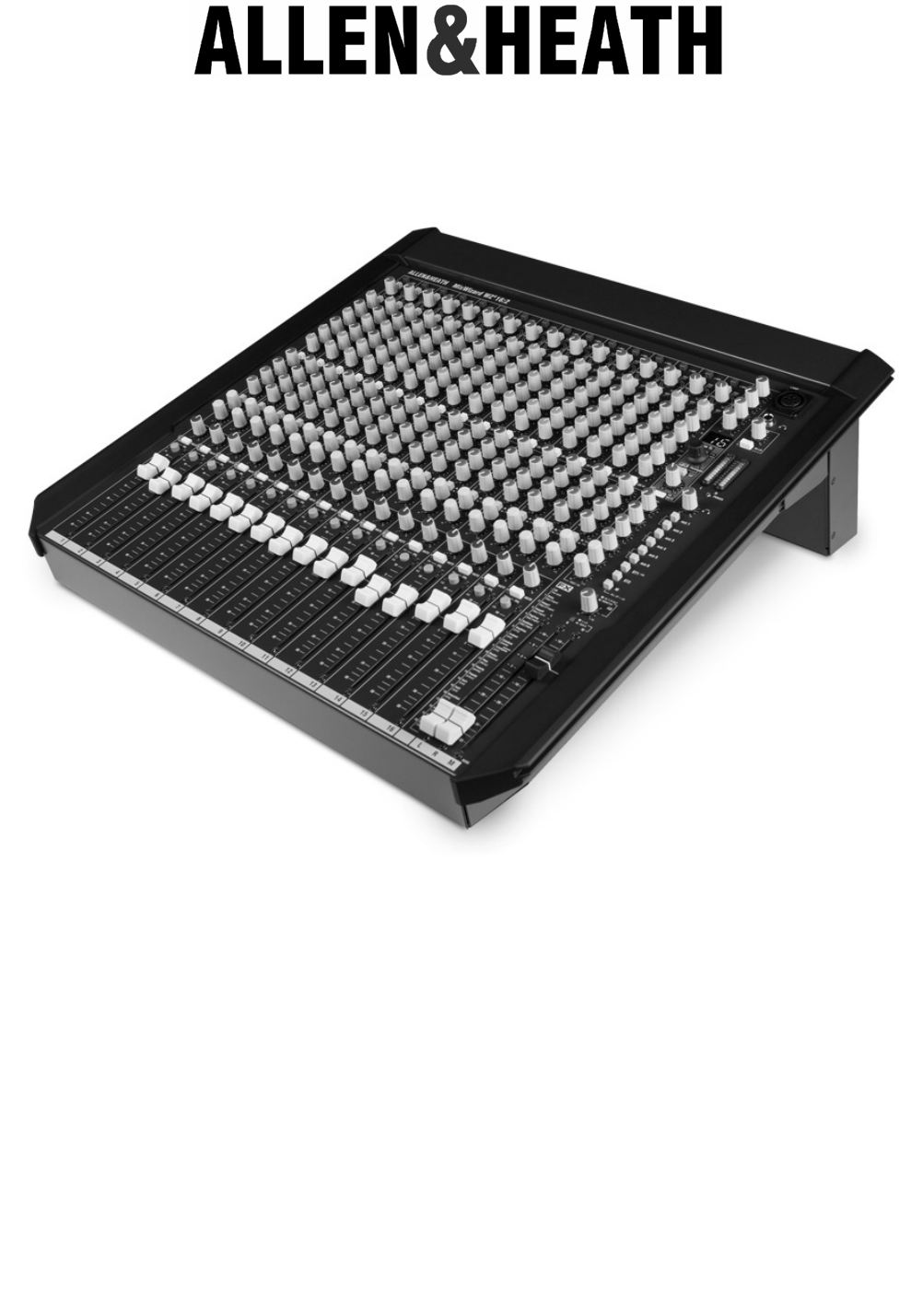

MixWizard WZ4 16:2 and WZ4 12:2 USER GUIDE Publication AP8665
Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating.
Safety Instructions WARNING - Read the following before proceeding : CAUTION ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR Read instructions: Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the console. Follow the operating instructions printed in this User Guide. Do not remove cover: Operate the console with its covers correctly fitted.
Safety Instructions Important Mains plug wiring instructions. The console is supplied with a moulded mains plug fitted to the AC mains power lead. Follow the instructions below if the mains plug has to be replaced.
Introduction Welcome to the Allen & Heath WZ4, the latest generation of the popular MixWizard series of compact audio mixing consoles. We have tried to keep this user guide brief and to the point. Please read it fully before starting. Included is information on installing, connecting and operating the console, panel drawings, system block diagram and technical specification.
LAMP +48V +48V 0 -5 GAIN GAIN 5 -10 0 -5 PAD -20 PAD (LINE) 30 16 1 Delay [tap] [regen] 16 (LINE) 40 0 20 GAIN 30 ON 40 60 40 HPF HPF HF TO 60 40 TO HF 9-10 TO (ST1+ST2) TO 11-12 0 -5 GAIN LR GAIN 5 -10 0 -20 3k 700 1k 6k 500Hz 4k -20 700 15k 15k HF HF AUX5 12 PlateDly [predly] 70 250 45 70 35Hz 1k LM 250 45 400 HM HM Press 14 Hall1 [size] 15 Hall2 [size] 1k LM LM LM Parameter Hold 16 ConcertHall [size] TAP 17 Arena [size] LF LF
Introducing the MixWizard The Allen & Heath MixWizard series of consoles includes several models. This user guide describes the WZ416:2 and WZ412:2 stereo models. For further information on the MixWizard series please refer to the Allen & Heath web site.
Installing the Console Free Standing The console is supplied ready for free standing operation with its side trims fitted and connector pod positioned for rear access. If you are converting from rack to free standing then make sure the pod is correctly rotated and secured, and the side trims fitted as shown: 19” Rack Mount For rack mounting, remove the two side trims and rotate the pod into the connector position preferred. Allow enough space for the cables and connectors behind the console.
Connecting Power FUSE CAUTION T630mA L 250V 20mm RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR. AC MAINS IN ~ 100 - 240V~ 47-63Hz 45W MAX OFF ON 0 I CONFORMS TO ANSI/UL STD. 60065-2003 CERTIFICATED TO CAN/CSA STD.60065-03 CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING. ATTENTION: REMPLACER PAR UN FUSIBLE STRICTEMENT IDENTIQUE EN VALEURS.
3 1+3 = 12V OUTPUT INPUT XLR male socket XLR female socket 1 2 2 1 1 LAMP PIN 2 = HOT 3 3 1=ground 2=hot + BALANCED 4 = 0V Female XLR plug 2=hot + 1=ground BALANCED XLR male plug 3=cold - 3=cold - UNBALANCED UNBALANCED INPUT / OUTPUT HEADPHONES UNBALANCED Sleeve=ground Ring=RIGHT Tip=LEFT link Ring to Sleeve INSERT BALANCED Sleeve=ground Ring=return Tip=send Sleeve=ground Ring=cold Tip=hot + UNBALANCED Y-Adapter Y-Adapter RCA phono jacks 2 Outputs to 1 Input adapter 1 O
Audio Connections The MixWizard uses professional grade 3 pin XLR and 1/4" TRS (3 pole) jack sockets. To ensure best performance, we recommend that you use high quality audio cables and connectors, and take time to check for reliable and accurate cable assembly. It is well known that most audio system problems are due to faulty or sub standard interconnecting leads.
MixWizard WZ4 16:2 ALLEN&HEATH L INSERT 16 INSERT 15 14 INSERT 13 INSERT INSERT 12 11 INSERT 10 INSERT INSERT 9 INSERT 8 INSERT 7 INSERT 6 INSERT 5 INSERT 4 INSERT 3 INSERT 2 1 INSERT INSERT R L R LINE IN LINE IN LINE IN LINE IN LINE IN LINE IN LINE IN 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC MIC DIRECT OUT 16 DIRECT OUT 15 DIRECT OUT 14 DIRECT OUT 13 DIRECT OUT 12 DIREC
The Console connectors MIC / LINE IN The channel PAD (LINE) switch selects either the MIC XLR or the LINE TRS jack as the input source. The XLR is normalled through the TRS jack. This means that the XLR can be used for microphone or line level signals when nothing is plugged into the jack socket. Both inputs are balanced but can be wired to work with unbalanced signals when required.
L, R, M OUT The main console mix outputs are on balanced XLR. These produce +4dBu when the meters read ‘0’. The M output can be switched to provide a mono sum of the post-fade L and R signals, or the AUX6 output. The L and R outputs typically feed the house PA system in live sound mixing, or a 2track recorder in studio mixing. In mono mode, the M output can provide an additional feed for a mono fill speaker or zone, or be used as the main feed into a mono PA.
The MONO Input Channel +48V PAD (LINE) 30 +48V Switches +48VDC to the channel input XLR for powering microphones or DI boxes that need phantom power. The power is current limited through 6k8 ohm resistors to pins 2 and 3. 40 0 20 GAIN 50 - 10 10 60 40 HPF HF WARNING: Do not connect unbalanced sources or cables to inputs with phantom power selected. To avoid loud clicks always mute the channel before switching +48V on or off and when plugging or unplugging microphones.
+48V PAD (LINE) 30 AUX SENDS These rotary controls adjust how much channel signal is mixed to the aux outputs. Each of the 6 auxes has its own control. They adjust from fully off to +6dB boost. Unity gain 0dB is marked at 3 o’clock position.
The STEREO Input Channel 0 -5 GAIN 5 -10 10 -20 16 ON TO TO 9-10 Dual stereo inputs Each of the two stereo channels has two stereo inputs which can be used separately, mixed together or split so that one feeds the channel, the other routes direct to LR. For example, you could mix two sound effects playback devices or two reverb returns together into one channel. This can be useful in saving channels, letting you mix many inputs in a small space.
The STEREO Effects Channel The MixWizard WZ416:2 and WZ412:2 feature a built-in stereo digital effects processor. The processed signal is routed back to the mix through the ST1 (ST5) stereo return channel. The two stereo effects mix together into the return channel. The ST1 (ST5) TRS jack inputs mix with the internal effects processor through the return channel. This allows you to have the internal and external effects devices returning their processed signals through one return channel.
The Master Section AUX MASTERS Each aux mix has a master level control that adjusts the output level to match external equipment, or to trim the monitor, effect or other send without affecting the mix balance. Up to +4dB boost is available above the normal 0dB position. PRE Note that the AUX5 and AUX6 master controls do not affect the level sent to the internal effects processor. They do affect the level available at the rear panel aux output sockets.
ST2 (ST6) RETURN This is a simple stereo return channel that routes to the main LR mix. The typical application is to plug in a CD or similar playback device for walk-in or background music. It can also be used as an additional effects return. Adjust the volume using the LEV control. Route the signal to LR by pressing the TO LR switch. The green LED lights to warn that the source is routed to LR. You can use the ST2 (ST6) input to monitor your 2-track recording.
Gain Structure How the levels between the different signal stages are set up is referred to as the gain structure. For best performance it is important that the connected source signals are matched to the ‘normal operating level’ of the console. Similarly the levels of the connected amplifiers and destination equipment should be correctly matched to the console outputs.
Specifications Performance Maximum output level XLR Jack +26dBu into 600 ohms max load +21dBu into 2k ohm max load Internal headroom Channels Mix Meters Sensitivity Master meters Channel meters 3 colour LED, quasi peak response 0VU = +4dBu at XLR output 12 segment -30 to +16dB 2 segment -12, +16dB (5dB before clip) +21dB +23dB Frequency response 10Hz to 30kHz +/-0.5dB THD+n at +10dBu 1kHz Channel to mix out < 0.
Connections Mono channel XLR balanced pin 2 hot TRS balanced, tip hot Pad out (MIC) Pad in (MIC or LINE) Max input level XLR phantom power Sensitivity -60 to +10dBu Sensitivity -40 to +10dBu 2k ohm >10k ohm, -20dB +30dBu +48V, on/off Stereo channel ST1,3 TRS unbalanced ST2,4 TRS balanced >10k ohm, -16 to +20dBu >10k ohm, -16 to +20dBu Stereo returns ST1(5) TRS balanced ST2(6) TRS unbalanced >10k ohm, -6 to +20dBu >2k ohm, -2 to +20dBu Inserts Channel Output TRS, tip send, ring return, 0dBu TRS, t
WZ4 16:2 Block Diagram TIP= + 2= + WZ4 16:2 MIC LINE BALANCED INSERT 0dBu 48V -20dB LINE (PAD) TIP= SEND GAIN HF HM LM LF PRE-FADE POST-FADE PK SIG FADER PFL AUX JUMPER POST-EQ + MUTE JS1 JS4 3 JS2 2 PR 1 SW AUX SUM SUM S MUTE PR PCB SOLDER OPTIONS PRE-INSERT BALANCED 0dBu + + - + UNBALANCED -2dBu JS5 JS8 SW JS7 PAN JS3 JS6 SW PO PRE PO SW 6 AUX4 AUX3 AUX2 AUX1 LR TO MONITOR FROM AUX5,6 5 4 ST2 TO LR LR TO MONITOR STEREO RETURN 2 JP1 MONO/STEREO
WZ4 12:2 Block Diagram TIP= + 2= + WZ4 12:2 MIC LINE BALANCED INSERT 0dBu + - + - 48V -20dB LINE (PAD) TIP= SEND GAIN + - RING= RETURN GAIN GAIN IMPEDANCE BALANCED 0dBu DIRECT OUT RING= - TIP= + MIC/LINE INPUTS L/M INPUT ST1(3) R L/M INPUT ST2(4) R PHANTOM POWER HF HM LM LF PK SIG FADER PFL AUX JUMPER POST-EQ PRE-INSERT + 2 MUTE SW JS1 PCB SOLDER OPTIONS PR 1 JS2 AUX PRE-FADE POST-FADE PR = PRE-FADE SW = SWITCHED PO = POST-FADE PK SIG MUTE CN4 JS4 PR JS5 JS8
User Options REMOVE 4x M4 POZI SCREWS PER SIDE REMOVE SIDE TRIMS The MixWizard has a versatile architecture which should satisfy most applications you may encounter without modification. However, the following internal options provide alternative settings for those applications that may demand them. Access is required to the internal assemblies. pluggable jumper links are used in most places and also some links require cutting and soldering a solder bridge.
Aux pre/post insert/EQ MONO CH - AUX PRE/POST EQ PR PO PR PO DIR AUX MONO CH - DIRECT OUT Direct output source PO SW AUX 5 Mono Channel Aux pre/post settings JS7 JS8 JS5 JS6 JS3 JS4 JS1 JS2 MONO CH - AUX PRE/POST FADER PR SW AUX 3-4 Factory default is pre-fader. This is common for live recording to multitrack. The live mix fader movements do not affect the recording. Move the jumper from PR to PO to change to post-fade.
AUX master balance option The 6 aux outputs are impedance balanced as standard operating at nominal -2dBu and with +21dBu maximum drive. They provide similar interference rejection to electronically balanced outputs when connected to balanced equipment inputs. An electronically balanced option is available if you require nominal +4dBu and higher output drive up to +26dBu over very long cable runs.
WZ412:2 Cue Sheet Copy and use this page to record your console settings LAMP ALLEN&HEATH MixWizard WZ4 12:2 +48V +48V +48V +48V +48V +48V +48V +48V GAIN 0 -5 GAIN 5 -10 0 -5 PAD PAD (LINE) 30 0 (LINE) 40 20 PAD 30 0 GAIN (LINE) 40 20 60 40 30 0 GAIN 60 40 30 0 40 20 60 40 HPF 40 20 10 60 40 40 20 60 40 40 20 60 40 60 40 HPF HF TO HF 9-10 GAIN LR TO (ST1+ST2) TO 11-12 0 -5 GAIN 5 -10 0 -5 3k 3k 1k 4k 700 6k 500Hz 3k 1k 4k 700
WZ416:2 Cue Sheet Copy and use this page to record your console settings LAMP ALLEN&HEATH MixWizard WZ4 16:2 AUX +48V +48V PAD PAD (LINE) 0 30 20 0 40 30 20 50 60 40 0 40 50 - 10 10 30 20 60 40 30 20 50 - 10 10 60 40 HPF HF 0 HF 0 40 50 - 10 10 30 20 60 40 HF 0 40 50 - 10 10 30 20 60 40 30 20 50 - 10 10 60 40 HPF HF 0 HF 0 40 50 - 10 10 30 20 60 40 HF 0 40 50 - 10 10 30 20 60 40 HF 0 40 50 - 10 10 30 20 HF 0 40 60 40 50 - 10 10 30
