User guide

1-1
Chapter 1
AT-3714F, AT-3726 Hardware
Description
The AT-3714F switch provides 12 Ethernet 10Base-FL ports and one
built-in 100Base-FX port. The AT-3726 switch is a standalone,
managed Ethernet switch that provides 24 10Base-T ports and one
built-in 10/100Base-TX port. Both switches include a 100Base-X slot
that can be configured with an optional 10/100Base-TX or
100Base-FX port.
The switches are intended for connections to the desktop as well as
workgroup applications and implement direct high-speed server
and backbone connections. Full duplex capability on all ports
eliminates collisions and provides up to 20 Mbps on the 10Base ports
and up to 200 Mbps of bandwidth on the 100Base ports to servers,
routers, and other switches. With built-in management, this switch
provides seamless management capability such as SNMP.

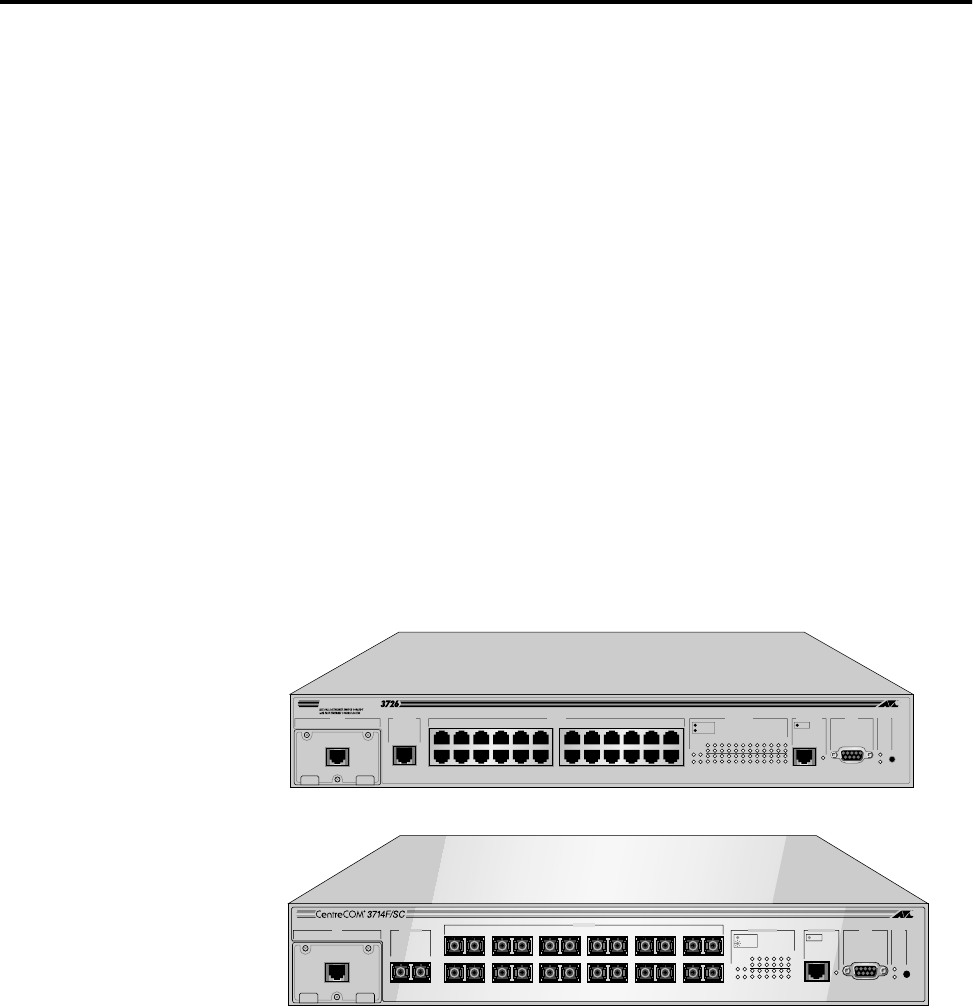

Figure 1-1 AT-3726 and AT-3714F Switches
3701
100BASE-TX
X
MDA
B
100BASE-FX MIRROR PORT RS-232
TERMINAL PORT
STATUS
RESET
10BASE-FL
PORT ACTIVITY
1357911
2AB 4 6 8 10 12
1357911
24681012
A
LINK LINK
ACTIVITY
FAULT
POWER
X
10BASE-FL ETHERNET SWITCH
with FAST ETHERNET 100BASE ACCESS
TX RX TX RX TX RX TX RX TX RX TX RX
TX RX
PORT B 100BASE-TX MIRROR PORT RS-232
TERMINAL PORT
STATUS
RESET
10BASE-T PORT ACTIVITY
1357911131517192123
2AB 4 6 8 10 12 14 16 18 20 22 24
1X 3X 5X 7X 9X 11X 13X 15X 17X 19X 21X 23X
2XA4X6X8X10X 12X 14X 16X 18X 20X 22X 24X
LINK LINK
ACTIVITY
FAULT
POWER
3701
100BASE-TX
X
X
CentreCOM
AT-3726
AT-3714F
