AT-3714F and AT-3726 Installation Guide
2-9
Media Dependent Adapters
Two types of Media Dependent Adapters (MDAs) can be installed in
the AT-3714F, AT-3726 switch: either the AT-3701 (RJ45) or the
AT-3701F/SC.

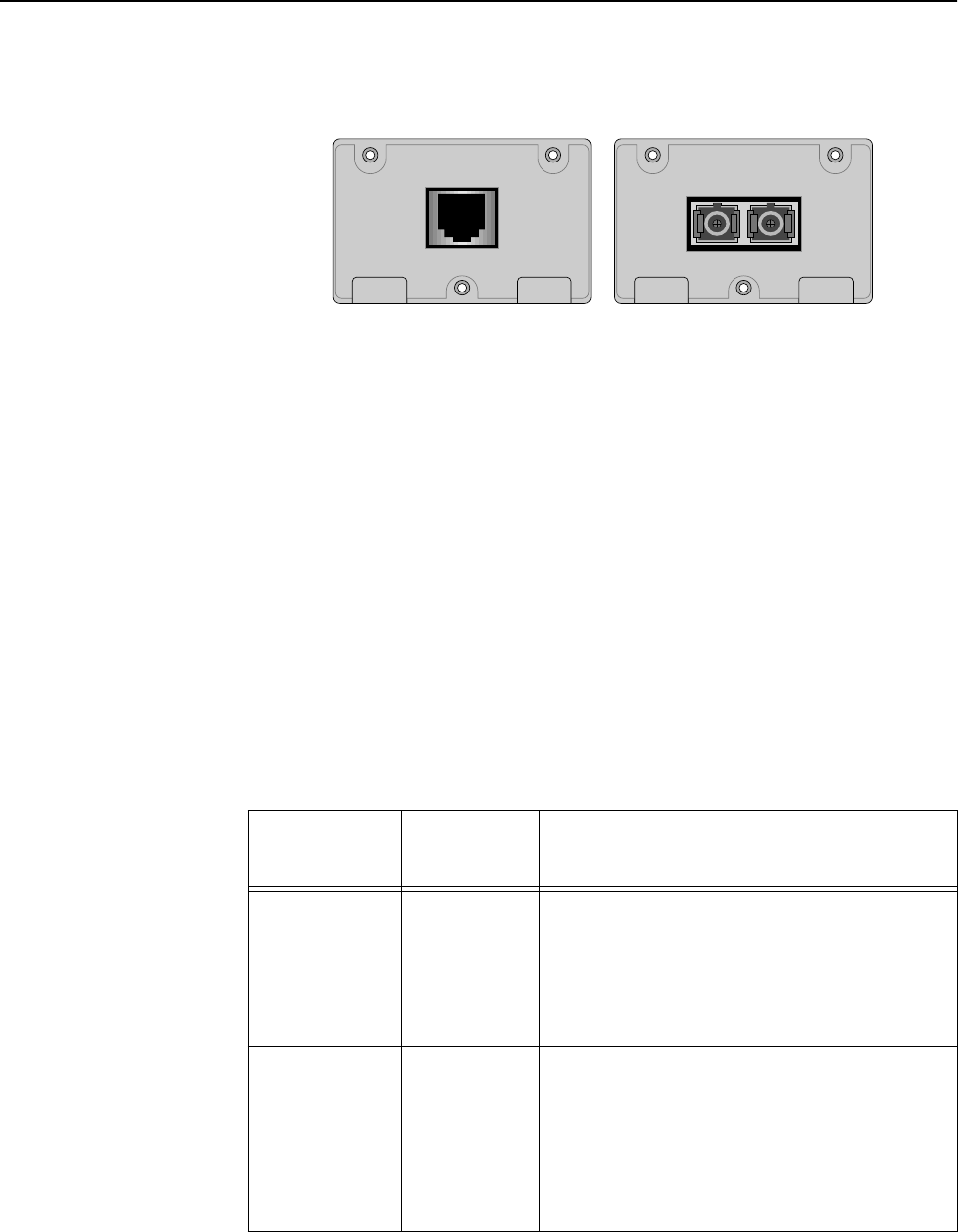

Figure 2-3 AT-3701 and AT-3701F/SC MDA Front Panel
Verifying
Package
Contents
Make sure that you have received the following items:
❑ Media Dependent Adapter (MDA)
❑ Three Phillips panhead screws
❑ AT-3701, AT-3701 F/SC Media Dependent Adapter Quick
Install Guide
❑ Warranty card
Media
Dependent
Adapter
Features
Table 2-3 lists the MDA features.
3701F/SC
100BASE-FX/SC
RXTX
3701
100BASE-TX
X
Table 2-3 Media Dependent Adapter Features
Adapter
Supported
Cable
Description
AT-3701 UTP 10/100Base RJ45 port
Ethernet port: auto-negotiated speed
and duplex mode
10/100Base-T max. segment length:
330’ (100m), Category 5 UTP
AT-3701F/SC Fiber SC 100Base: multimode SC fiber connector
100Base Ethernet port
100Base-FX: max. segment length 1.25
miles (2 km for full duplex, 412 M for half
duplex); 50/125 and 62.5/125 micron
multimode fiber
