User Manual

Chapter 12: Classifiers
144 Section II: Advanced Operations
Modifying a Classifier
This procedure explains how to modify a classifier. If the classifier you
want to modify is currently assigned to an active ACL or QoS policy, you
must first remove the port assignments from the ACL or policy before you
can modify the classifier. Once you have finished modifying the classifier,
you can reassign the ports again to the ACL or QoS policy.
To modify a classifier, perform the following procedure:
1. From the Home Page, select Configuration.
2. Select the Network Security or Services menu selection. (The
Classifier tab is accessible from both menu selections.)
3. Select the Classifier tab.
The Classifier tab is shown in Figure 33 on page 138.
4. Click the dialog circle next to the classifier you want to modify and click
Modify. You can modify only one classifier at a time. An example of
the Modify Classifier page is shown in Figure 36.

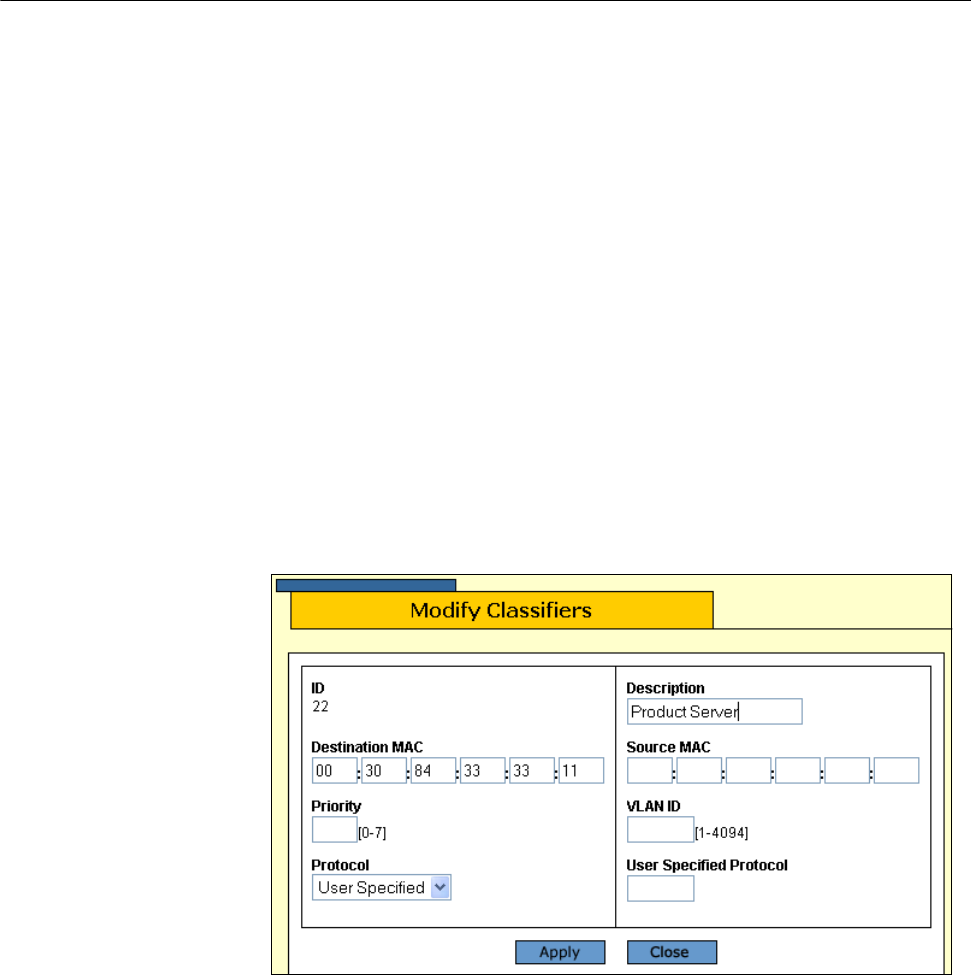

Figure 36. Modify Classifier Page
5. Modify the parameters as necessary. For definitions of the parameter,
refer to “Creating a Classifier” on page 138.
6. When you are finished modifying the parameters, click Apply. The
modifications are immediately implemented in the classifier.
7. To permanently save your changes, select the Save Config menu
selection.
