Chapter 19: SNMPv3

206 Section III: SNMPv3

Enabling the SNMP Protocol

In order to allow an NMS (an SNMP manager) to access the switch, you

need to enable SNMP access. In addition, to allow the switch to send a

trap when it receives a request message, you need to enable

authentication failure traps. This section provides a procedure to

accomplish both of these tasks.

To enable SNMP access and authentication failure traps, perform the

following procedure.

1. From the Home Page, select Configuration.

2. Select Mgmt Protocols menu selection.

3. Select the SNMP Tab.

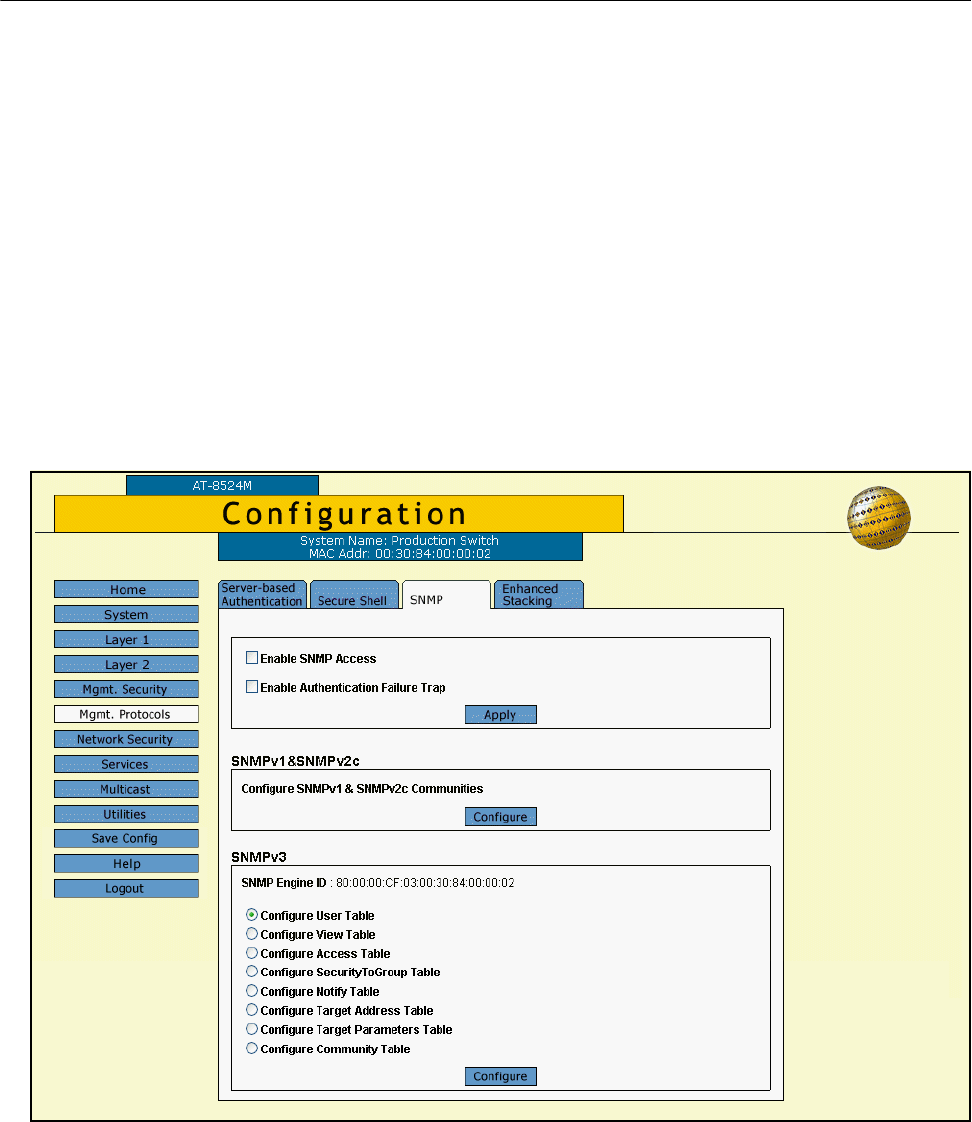

The SNMP Tab is shown in Figure 58.

Figure 58. SNMP Tab
