Chapter 10: Event Logs and Syslog Client
126 Section II: Advanced Operations
An example of the Full mode is shown in Figure 35.

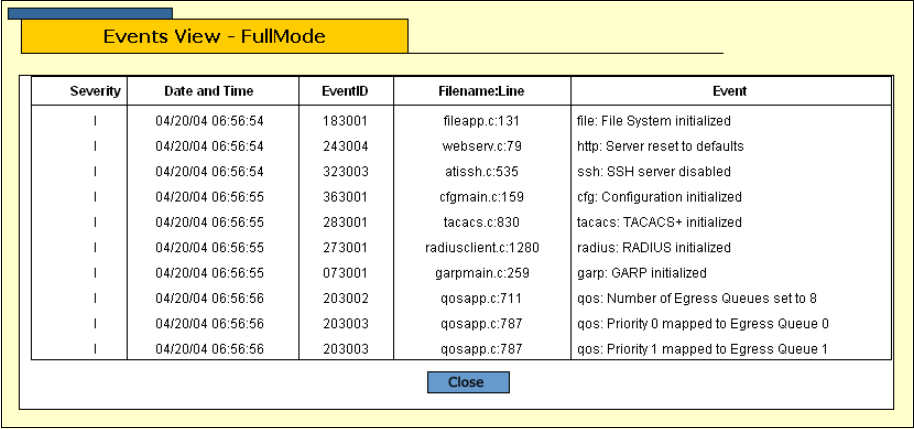

Figure 35. Event Log Example Displayed in Full Mode
The additional information displayed in Full mode is defined here:
Event ID
A unique, random number assigned to each event.
Filename:Line
The originator of the event displayed as the name of the AT-S63
software source file and the line number.
Clearing an
Event Log
To clear a log of all events, do the following:
1. From the home page, select Configuration.
2. From the Configuration menu, select the System option.
3. Select the Event Log tab.
The Event log tab is shown in Figure 33 on page 121.
4. In the Log Settings section, click the button next to the event log to be
cleared, either Permanent or Temporary.
5. Click the Clear Log checkbox.
6. Click Apply.
The events in the log are deleted. If the event log feature is enabled,
the switch starts to add new events to the log.
