AT-S63 Management Software Web Browser User’s Guide
Section II: Advanced Operations 133
4. In the Configure Log Outputs section of the tab, select the log output
file to be modified and click Modify.

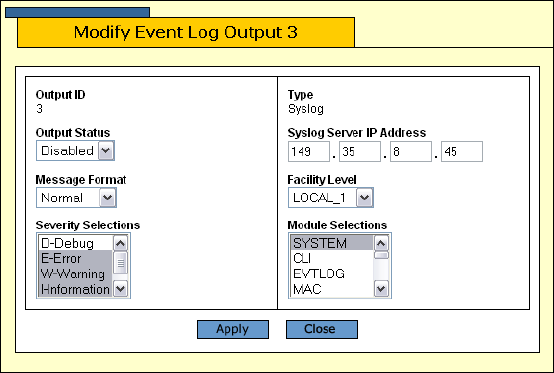

The Modify Event Log Output page is shown in Figure 39.
Figure 39. Modify Event Log Output Page
5. Modify the following parameters as necessary. For definitions of the
parameters, refer to “Configuring a Syslog Output Definition” on
page 129.
6. Click Apply to apply the changes or Close to close the page without
making changes.
7. To permanently save your changes, select the Save Config option in
the Configuration menu.
Deleting a Syslog
Output Definition
To delete a syslog output definition, perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the System option.
3. Select the Event Log tab.
The Event log tab is shown in Figure 33 on page 121.
4. In the Configure Log Outputs section, select the syslog output
definition to be deleted and click Delete.
The syslog output definition is deleted from the list and the switch
stops sending log events to the syslog server.
5. To permanently save your changes, select the Save Config option in
the Configuration menu.
