Chapter 11: Classifiers
136 Section II: Advanced Operations
Configuring a Classifier
To configure a classifier, perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Network Security or
Services option. The Classifier tab is accessible from both menu
selections.
3. Select the Classifier tab.
The Classifier tab is shown in Figure 40.

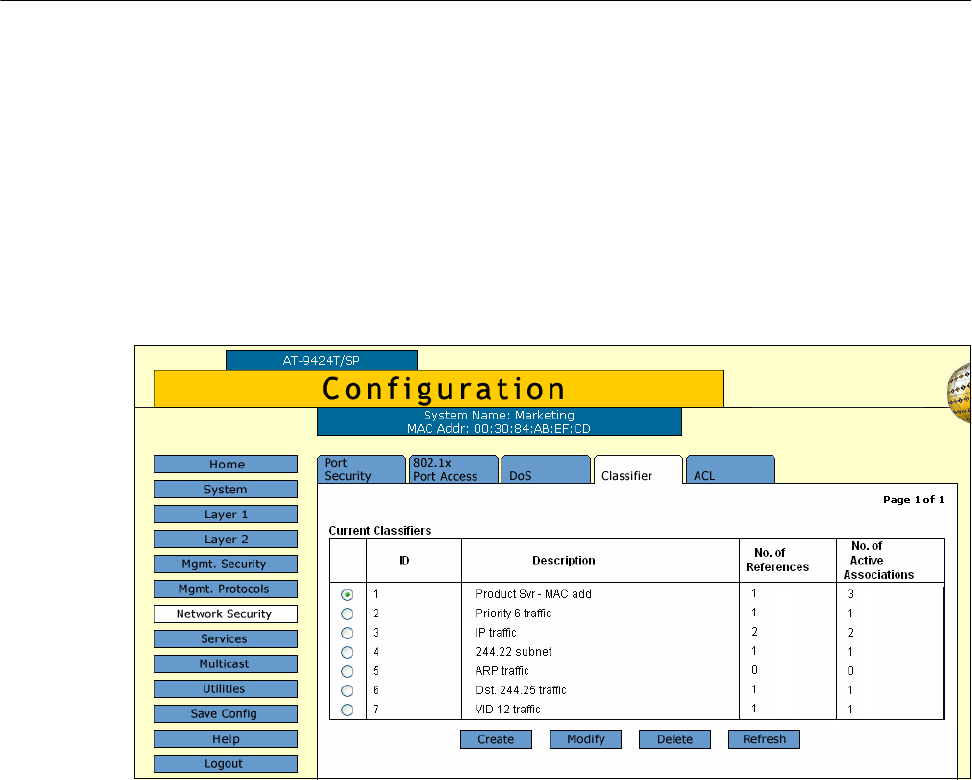

Figure 40. Classifier Tab (Configuration)
The tab lists the current classifiers on the switch. The columns are
defined here:
ID
The ID number of the classifier.
Description
A description of the classifier.
No. of References
The number of active and inactive ACLs and QoS policies where the
classifier is currently assigned. An active ACL or QoS is assigned to at
least one switch port, while an inactive ACL or QoS policy is not
assigned to any port. If this column is 0 (zero), the classifier is not
assigned to any ACLs or policies, active or inactive.
