Chapter 14: Quality of Service
166 Section II: Advanced Operations
Managing Flow Groups
This section contains the following procedures:
“Configuring a Flow Group,” next
“Modifying a Flow Group” on page 169
“Deleting a Flow Group” on page 170
“Displaying the Flow Groups” on page 170
Configuring a
Flow Group
To configure a flow group, perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Services option.
3. Select the Flow Group tab.
The Flow Group tab is shown in Figure 56.

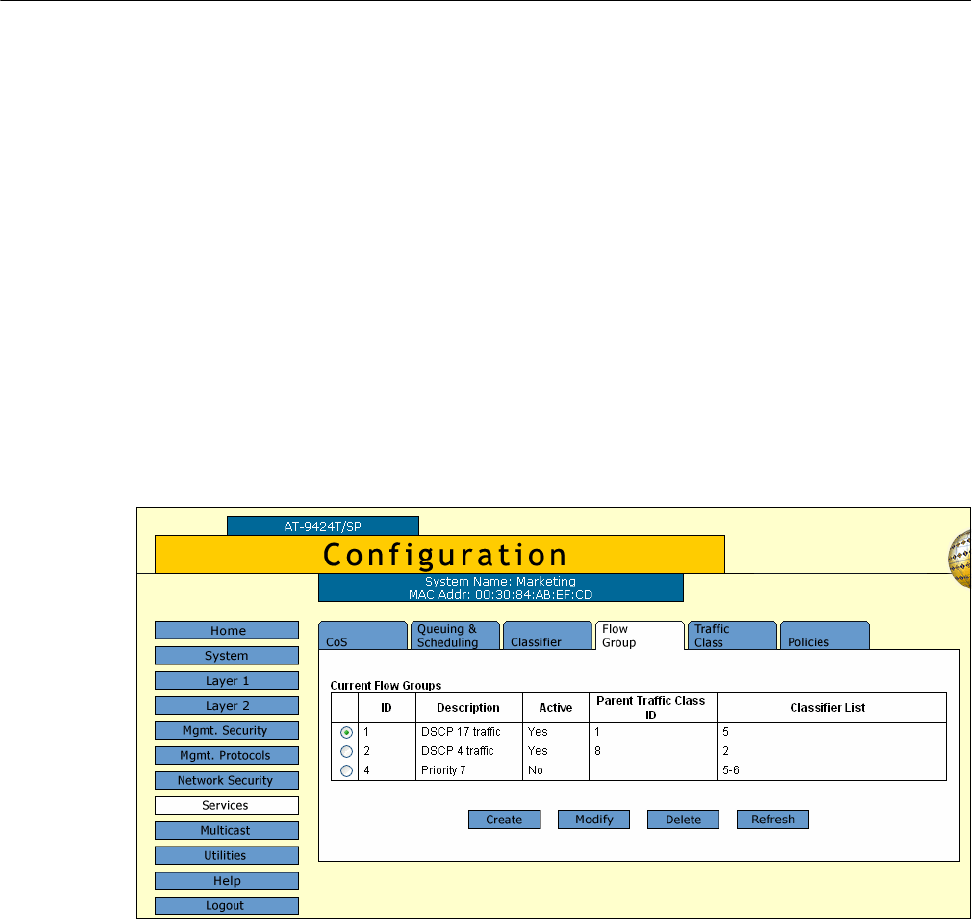

Figure 56. Flow Group Tab (Configuration)
The columns in the tab are defined here:
ID
The ID number of the flow group.
Description
The flow group description.
Active
The active status of the flow group. A flow group is deemed active if it
is part of a policy assigned to a switch port. A flow group is considered
