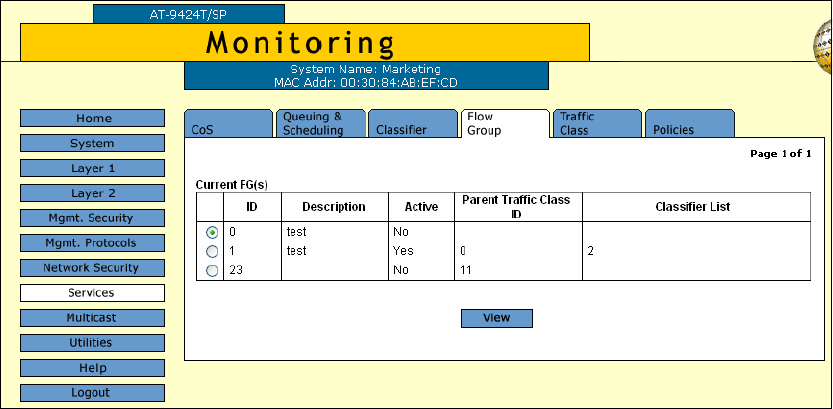

The Flow Group tab is shown in Figure 59.
Figure 59. Flow Group Tab (Monitoring)
The Flow Group tab displays the currently configured flow groups in a
table that contains the following columns of information:
ID
The ID number of the flow group.
Description
The flow group description.
Active
The active status of the flow group. A flow group is deemed active if it
is part of a policy assigned to a switch port. A flow group is considered
inactive if it is not assigned to any policies or if the policies have not
been assigned to any ports.
Parent Traffic Class ID
The traffic class where the flow group is assigned.
Classifier List
The classifiers of the flow group.
4. To display detailed information about a flow group, select the flow
group and click View.
The details of the flow group are displayed in the View Flow Group
page. For parameter definitions, refer to “Configuring a Flow Group” on
page 166.
5. Click Close.
