Chapter 14: Quality of Service
180 Section II: Advanced Operations
Managing Policies
This section contains the following procedures:
“Configuring a Policy,” next
“Modifying a Policy” on page 183
“Deleting a Policy” on page 184
“Deleting all Flow Groups, Traffic Classes, and Policies” on page 185
“Displaying Policies” on page 185
Configuring a
Policy
To configure a policy, perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Services option.
3. Select the Policies tab.

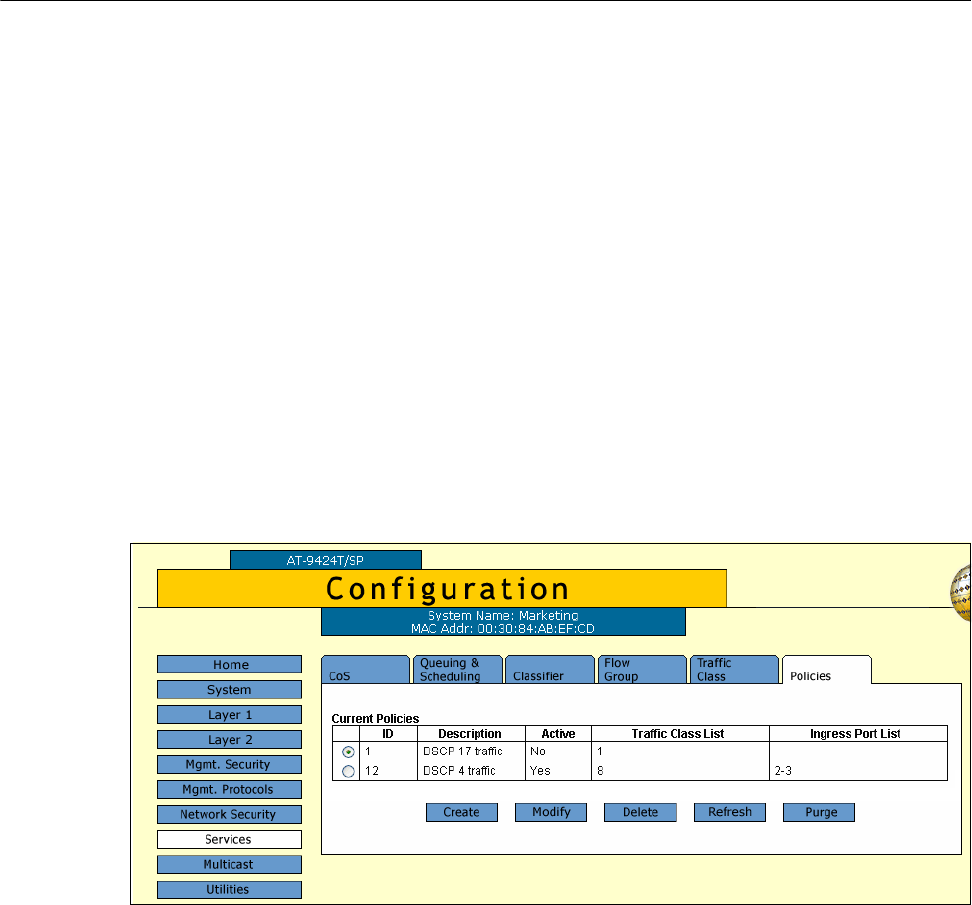

The Policies tab is shown in Figure 64.
Figure 64. Policies Tab (Configuration)
The Policies tab displays the existing policies in a table that contains
the following columns of information:
ID
The ID of the policy.
Description
A description of the policy.
