AT-S63 Management Software Web Browser User’s Guide
Section II: Advanced Operations 197
Displaying a List of Host Nodes
You can use the AT-S63 Management Software to display a list of the
multicast groups on a switch, as well as the host nodes. You can also view
the multicast routers. A multicast router is a router that is receiving
multicast packets from a multicast application and transmitting the packets
to host nodes.
To view host nodes, perform the following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select the Multicast option.
The Multicast page is displayed with the IGMP tab as shown in Figure
73.

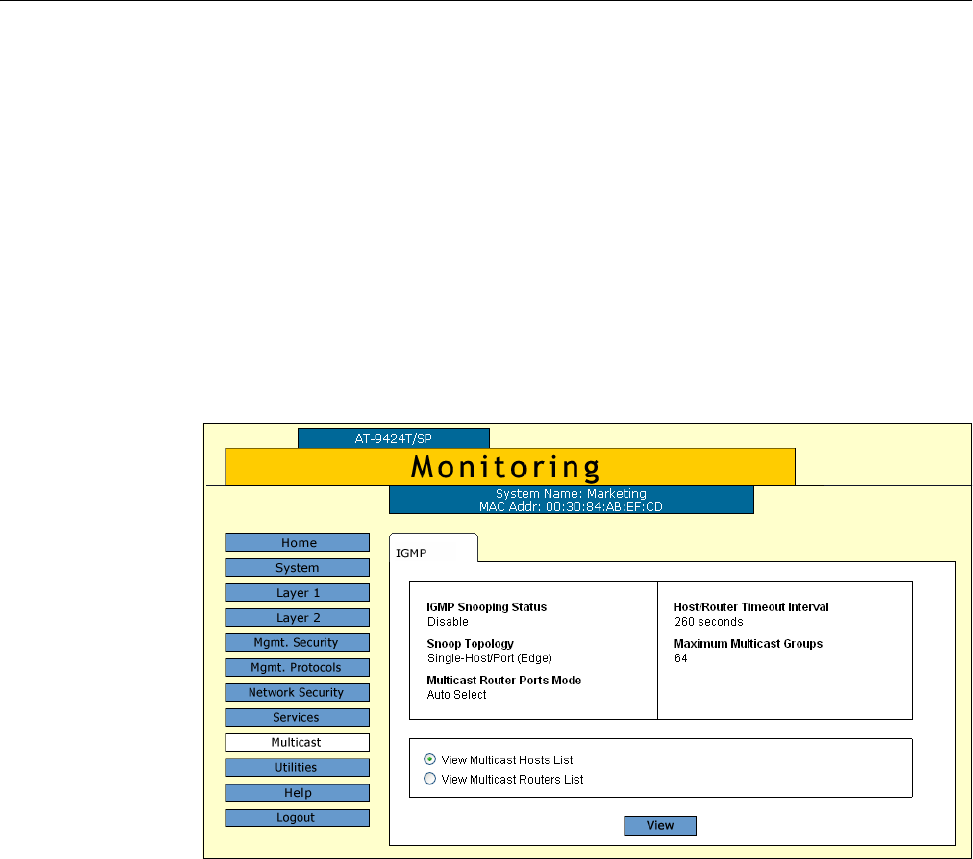

Figure 73. IGMP Tab (Monitoring)
For definitions of the parameters in the tab, refer to “Configuring IGMP
Snooping” on page 194.
3. To view the multicast addresses and the host nodes, click View
Multicast Hosts List and then click View.
The View Multicast Hosts List page is displayed. The page contains
the following columns of information:
Multicast Group
The multicast address of the group.
