AT-S63 Management Software Web Browser User’s Guide

Section II: Advanced Operations 199

Displaying a List of Multicast Routers

To view multicast routers, perform the following procedure:

1. From the Home page, select Monitoring.

2. From the Monitoring menu, select the Multicast option.

The Multicast page is displayed with the IGMP tab as shown in Figure

73 on page 197.

3. To view the multicast routers, click View Multicast Router List and

then click View.

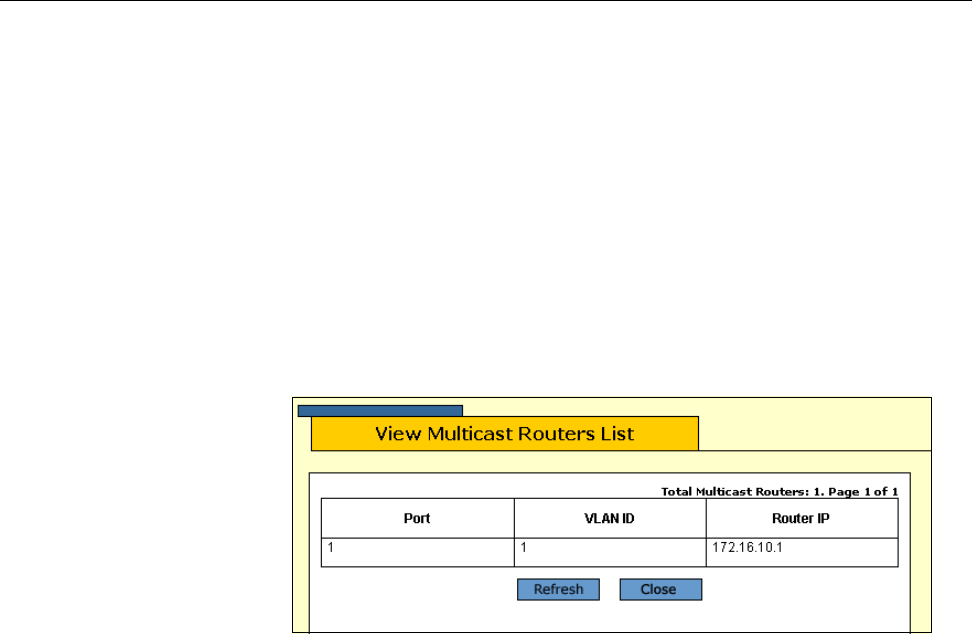

The View Multicast Routers List is shown in Figure 74.

Figure 74. View Multicast Routers List Page

The View Multicast Routers List page displays a table that contains the

following columns of information:

Port

The port on the switch where the multicast router is connected.

VLAN ID

The VID of the VLAN in which the port is an untagged member.

Router IP

The IP address of the port on the router.
