Section III: SNMPv3 233
4. Click the button next to the SecurityToGroup Table entry to be
changed, and then click Modify.
The Modify SNMPv3 SecurityToGroup page is shown in Figure 87.

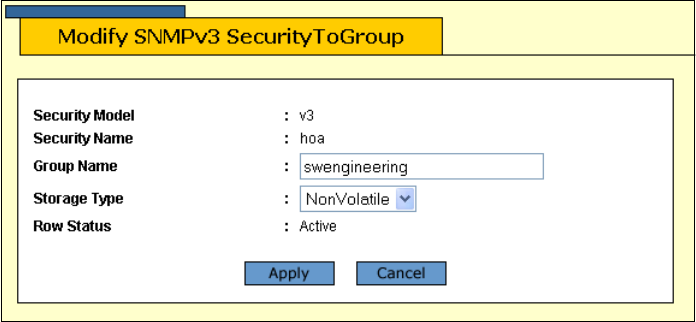

Figure 87. Modify SNMPv3 SecurityToGroup Page
5. In the Group Name field, enter a Group Name that you configured in
the SNMPv3 Access Table.
See “Creating an Access Table” on page 222.
There are four default values for this field that are reserved for
SNMPv1 and SNMPv2c implementations:
 defaultV1GroupReadOnly
 defaultV1GroupReadWrite
 defaultV2cGroupReadOnly
 defaultV2cGroupReadWrite
6. In the Storage Type field, select one of the following storage types for
this table entry:
Volatile
Select this storage type if you do not want the ability to save an entry in
the SecurityToGroup Table. After making changes to a
SecurityToGroup Table entry with a Volatile storage type, the Save
Config option is not displayed on the Configuration menu.
NonVolatile
Select this storage type if you want the ability to save an entry in the
SecurityToGroup Table. After making changes to a SecurityToGroup
Table entry with a NonVolatile storage type, the Save Config option is
displayed on the Configuration menu. Allied Telesis recommends this
storage type.
