AT-S63 Management Software Web Browser User’s Guide

Section III: SNMPv3 261

The SNMP tab is shown in Figure 100.

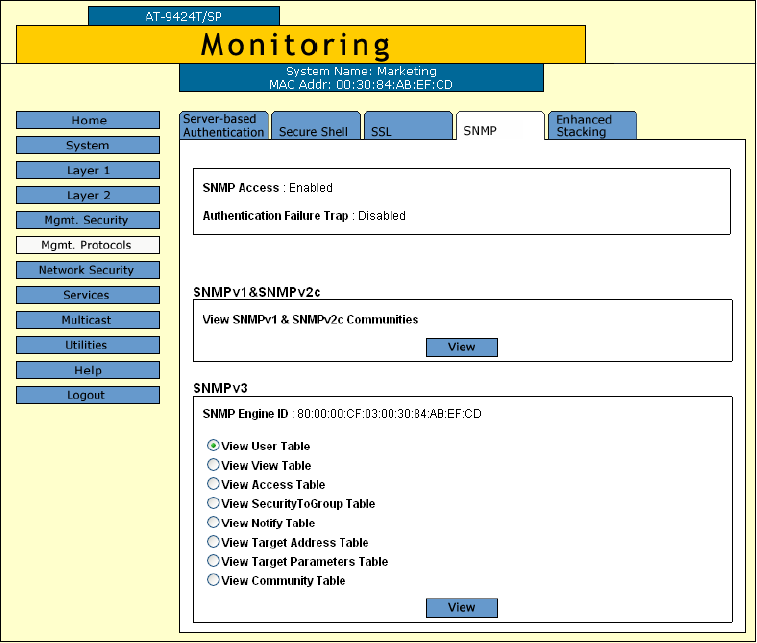

Figure 100. SNMP Tab (Monitoring)

4. In the SNMPv3 section, click the button next to View User Table and

then click View at the bottom of the tab.
