AT-S63 Management Software Web Browser User’s Guide

Section III: SNMPv3 265

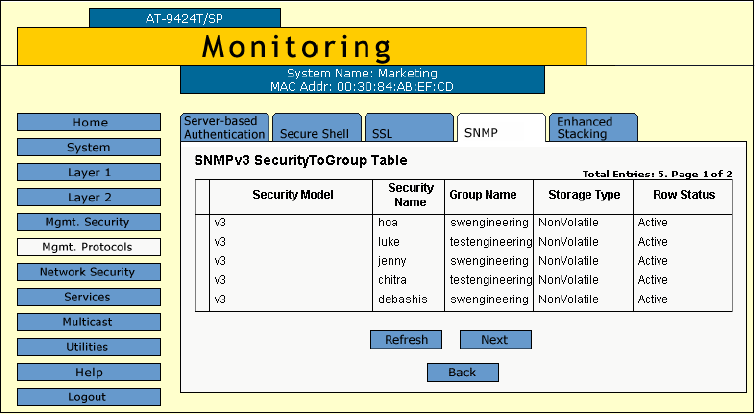

The SNMPv3 SecurityToGroup Table tab is shown in Figure 104.

Figure 104. SNMPv3 SecurityToGroup Table Tab (Monitoring)

Displaying Notify

Table Entries

To display entries in the SNMPv3 Notify Table, perform the following

procedure:

1. From the Home page, select Monitoring.

The Monitoring System page is displayed with the General tab

selected by default, as shown in Figure 5 on page 40.

2. Select the SNMP tab.

The SNMP tab is shown in Figure 100 on page 261.

3. In the SNMPv3 section, click the button next to View Notify Table and

then click View at the bottom of the tab.
