Chapter 17: SNMPv3

266 Section III: SNMPv3

The SNMPv3 Notify Table tab is shown in Figure 105.

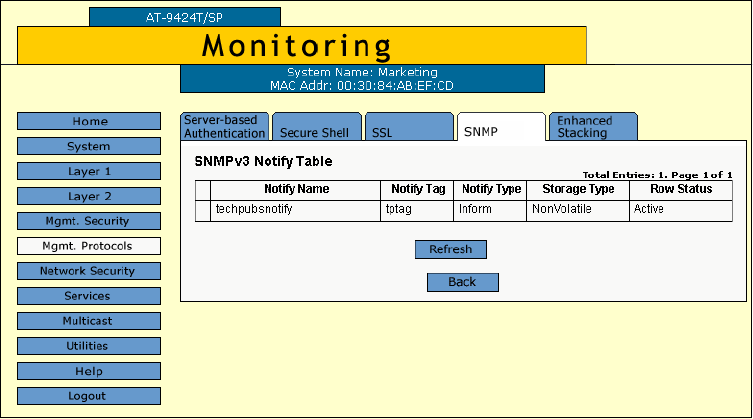

Figure 105. SNMPv3 Notify Table Tab (Monitoring)

Displaying Target

Address Table

Entries

To display entries in the SNMPv3 Target Address Table, perform the

following procedure:

1. From the Home page, select Monitoring.

The Monitoring System page is displayed with the General tab

selected by default, as shown in Figure 5 on page 40.

2. Select the SNMP Tab.

The SNMP tab is shown in Figure 100 on page 261.

3. In the SNMPv3 section, lick the button next to View Target Address

Table and then click View at the bottom of the tab.
