AT-S63 Management Software Web Browser User’s Guide

Section IV: Spanning Tree Protocols 297

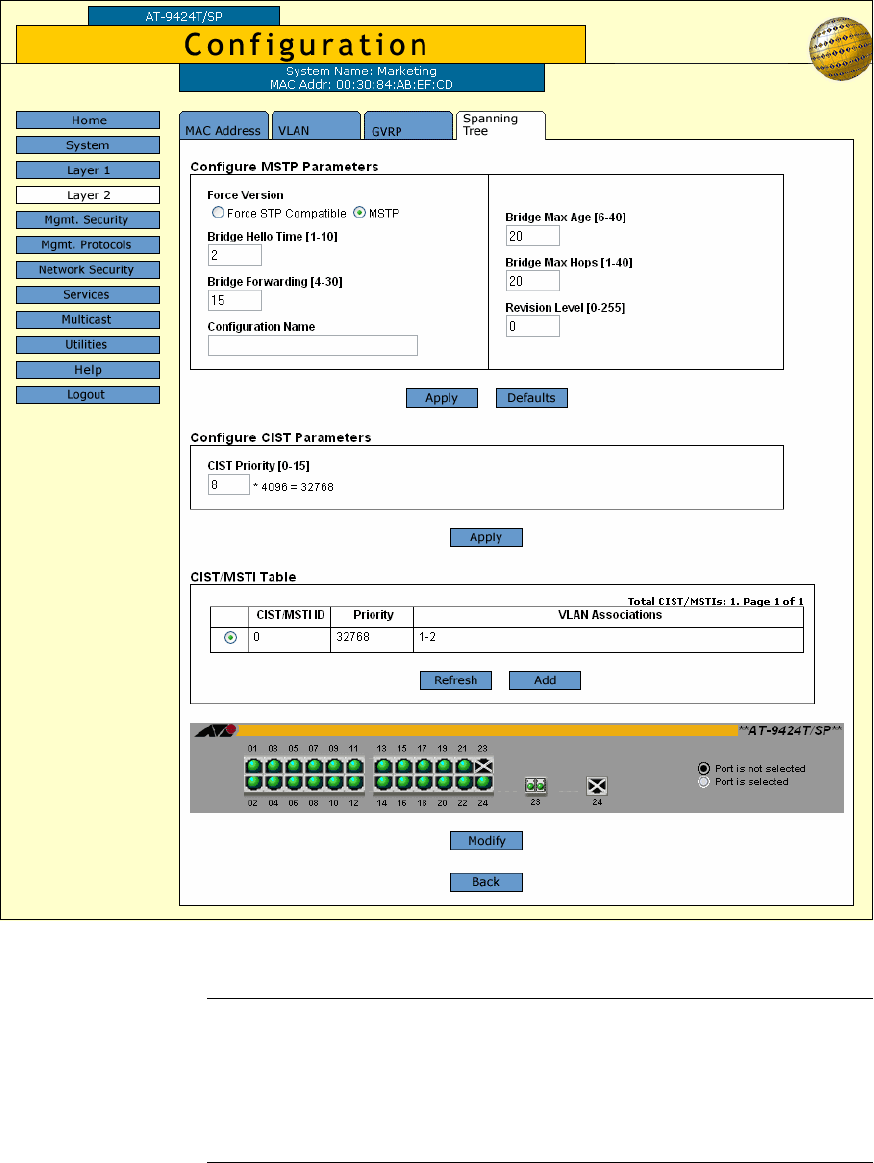

Figure 121. Configure MSTP Parameters Tab (Configuration)

Note

This procedure explains the Configure MSTP Parameters section of

the page. The CIST/MSTI Table is explained in “Creating an MSTI”

on page 300, “Modifying an MSTI” on page 301, and “Deleting an

MSTI” on page 302. The graphic image of the switch is described in

“Configuring MSTP Port Parameters” on page 304.
