Chapter 22: MAC Address-based Port Security
348 Section VI: Port Security
Configuring Port Security
To configure security for the ports, perform the following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Network Security option.
The Network Security page opens with the Port Security tab selected
by default, as shown in Figure 140.

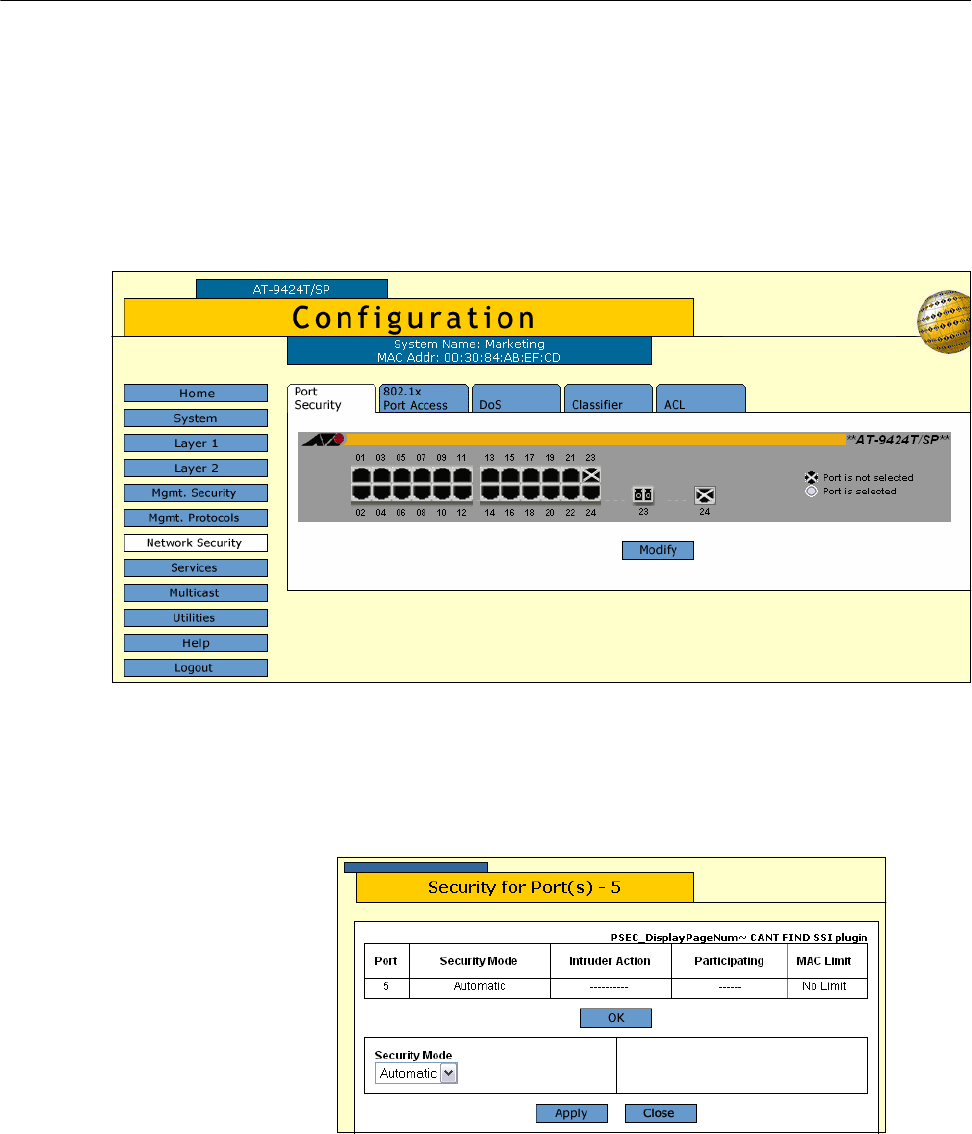

Figure 140. Port Security Tab (Configuration)
3. In the image of the switch, click the port to be configured and click
Modify. A selected port turns white. You can configure more than one
port at a time. The Security for Ports page is shown in Figure 143.
Figure 141. Security for Ports Page (Configuration)
