AT-S63 Management Software Web Browser User’s Guide
Section VI: Port Security 351
Displaying Port Security Levels
To display the MAC address-based security level of a port, perform the
following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select Network Security.
The Network Security page is displayed with the Port Security tab
selected by default, as shown in Figure 142.

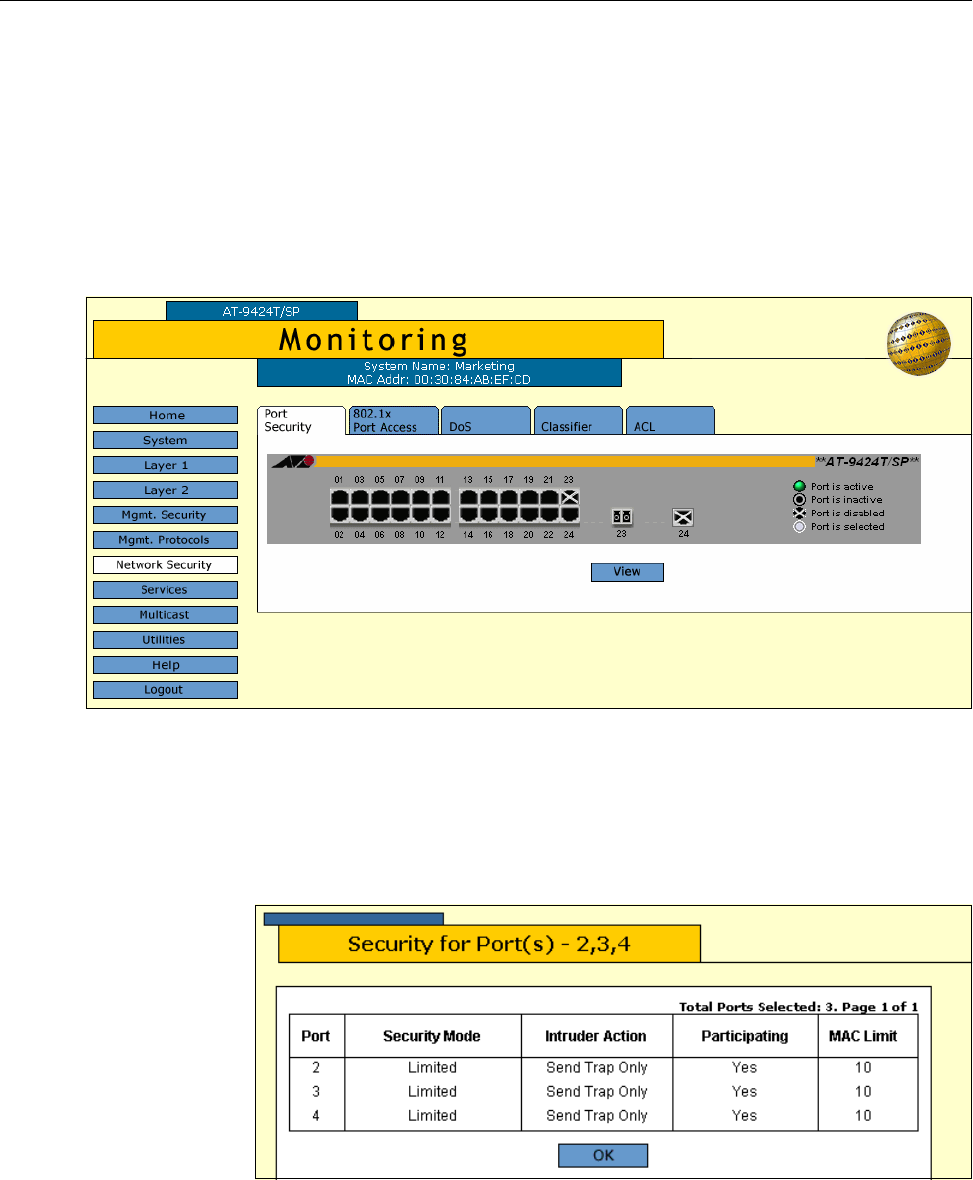

Figure 142. Port Security Tab (Monitoring)
3. Click the port whose port security level is to be displayed. A selected
port turns white. You can select more than one port at a time.
4. Click View. The Security for Port(s) page is shown in Figure 143.
Figure 143. Security for Port(s) Page
