Chapter 23: 802.1x Port-based Network Access Control
354 Section VI: Port Security
Setting Port Roles
To set port roles for port-based network access control, perform the
following procedure:
1. From the home page, select Configuration.
2. From the Configuration menu, select the Network Security option.
3. Select the 802.1x Port Access tab.
The 802.1x Port Access tab is shown in Figure 144.

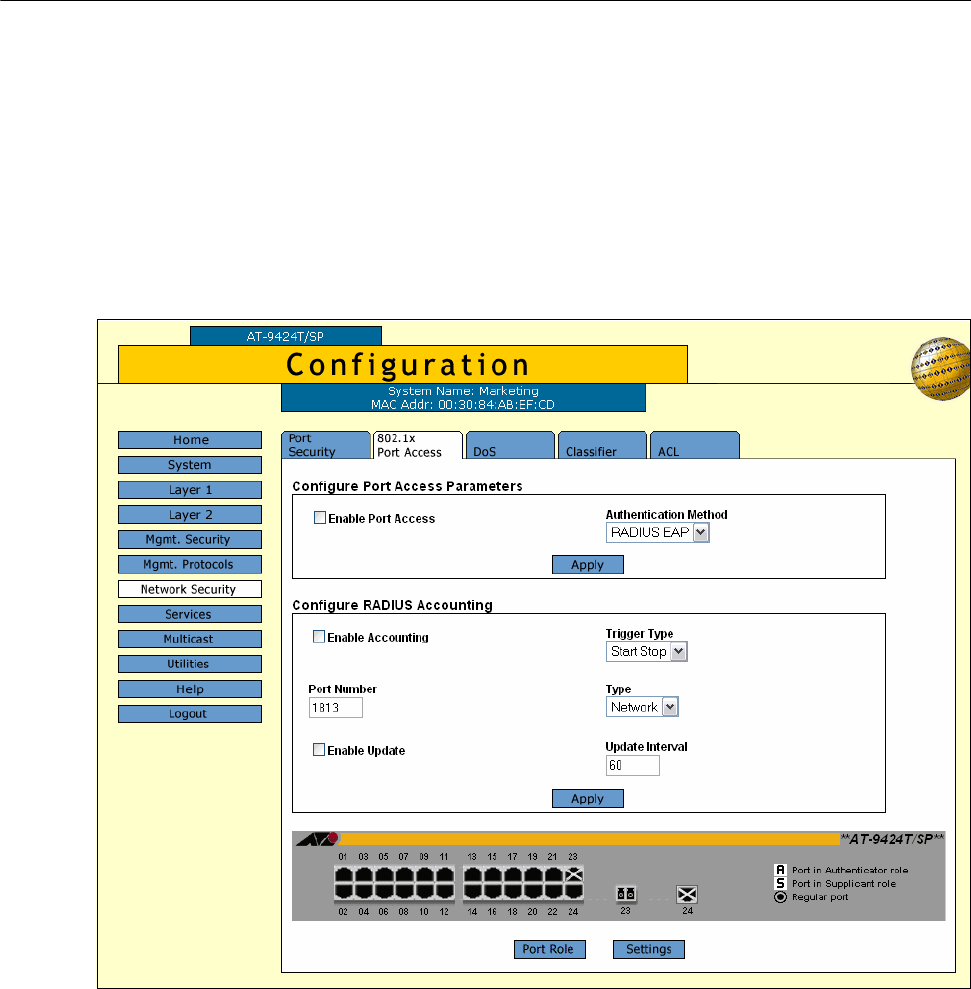

Figure 144. 802.1x Port Access Tab (Configuration)
The image of the switch displays the roles of the ports. An “A”
indicates an authenticator port and an “S” a supplicant port. A black
port has not been assigned a port role and is not participating in port-
based access control. This is the default setting for a port.
4. To set a port’s role, click the port. A selected port turns white. You can
configure more than one port at a time.
