Chapter 24: Encryption Keys, PKI, and SSL

374 Section VII: Management Security

Displaying the Encryption Keys

To configure the encryption keys, you must use the AT-S63 menus or

command line interface. For more information about encryption keys, refer

to the AT-S63 Management Software Menus Interface User’s Guide.

To display the encryption keys, perform the following procedure:

1. From the Home page, select Monitoring.

2. From the Monitoring menu, select the Mgmt. Security option.

3. Select the Keys tab.

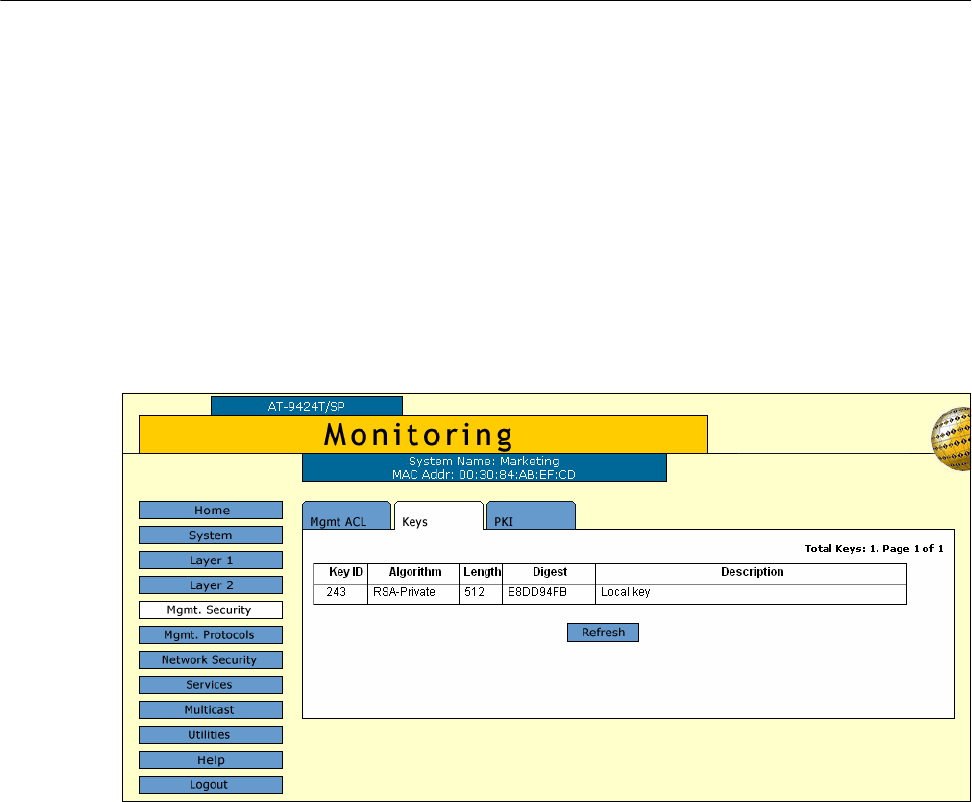

The Keys tab is shown in Figure 152.

Figure 152. Keys Tab (Monitoring)

The Keys tab displays a table that contains the following columns of

information:

The identification number of the key.

Algorithm

The algorithm used in creating the encryption. This is always RSA -

Private.

Length

The length of the key in bits.

Digest

The CRC32 value of the MD5 digest of the public key.
