AT-S63 Management Software Web Browser User’s Guide
Section VII: Management Security 379
Displaying the SSL Settings
To configure the SSL settings, you must use the AT-S63 menus or
command line interface. For instructions, refer to the AT-S63 Management
Software Menus Interface User’s Guide and the AT-S63 Management
Software Command Line Interface User’s Guide.
To display the SSL settings, perform the following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select the Mgmt. Protocols option.
3. Select the SSL tab.

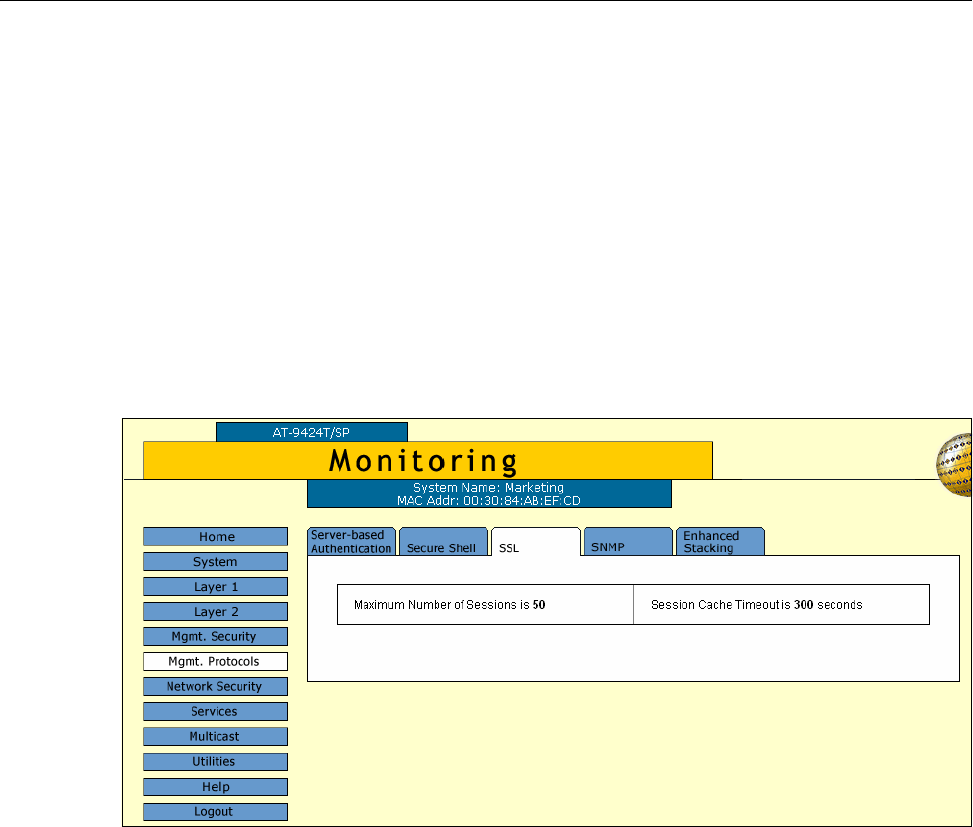

The SSL tab is shown in Figure 152.
Figure 155. SSL Tab (Monitoring)
The SSL tab provides the following information:
Maximum Number of Sessions
The maximum number of SSL sessions allowed at one time.
Session Cache Timeout
The length of time before the session cache times out, in seconds.
