Chapter 26: TACACS+ and RADIUS Protocols
396 Section VII: Management Security
Displaying the RADIUS Client Settings
To display the RADIUS client settings on the switch, perform the following
procedure:
1. From the Home page, select Monitoring.
2. Select the Mgmt. Protocols option.
The Mgmt. Protocols tab is displayed with the Server-based
Authentication tab selected by default, as shown in Figure 160 on
page 392.
The upper part of the page shows whether server-based
authentication is enabled or disabled and the authentication method.
The lower part of the page is used to view the settings of an
authentication client.
3. In the lower portion of the page, click RADIUS Settings.
4. Click View.
The RADIUS Client Configuration page is shown in Figure 161.

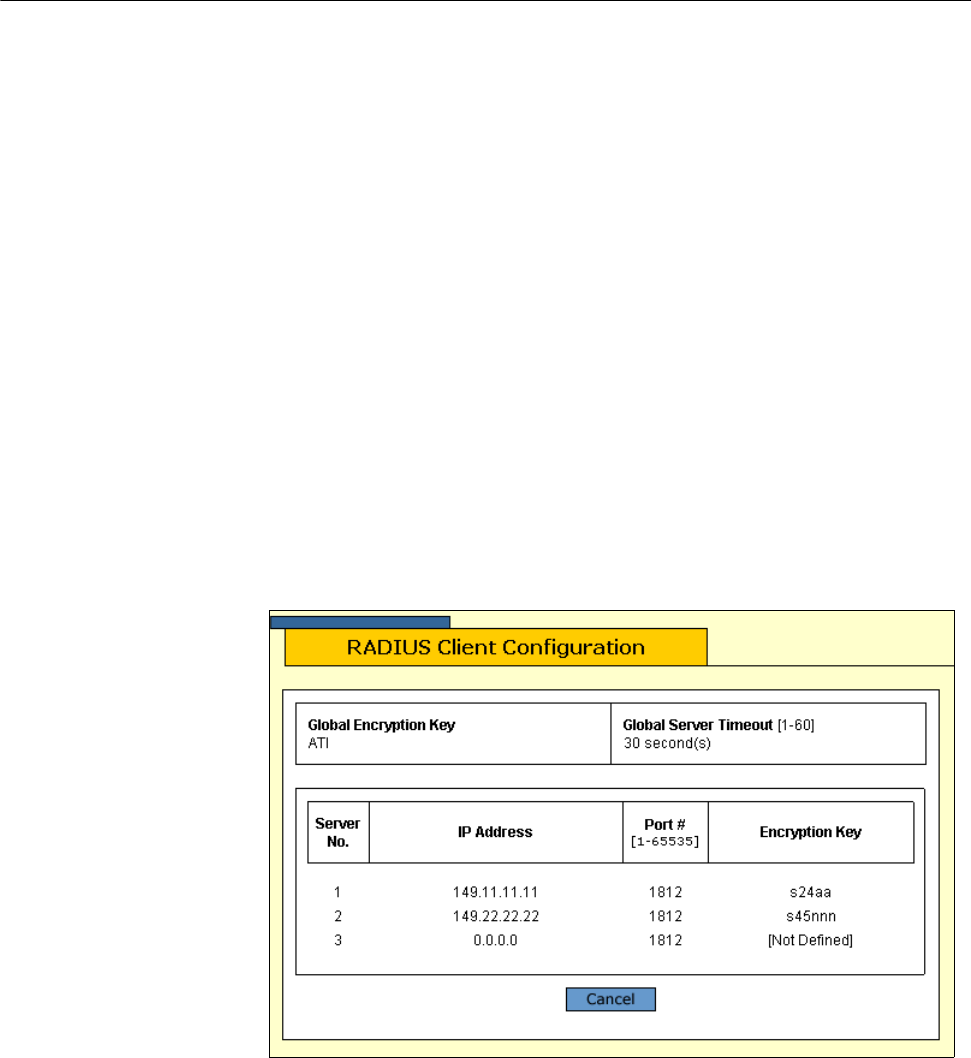

Figure 163. RADIUS Client Configuration Page
The upper portion of the page displays the following information:
Global Encryption Key
The global encryption secret.
