Chapter 7: Port Mirroring

96 Section I: Basic Features

Creating a Port Mirror

To create a port mirror, perform the following procedure:

1. From the home page, select Configuration.

2. From the Configuration menu, select the Layer 1 option.

3. Select the Port Mirroring tab.

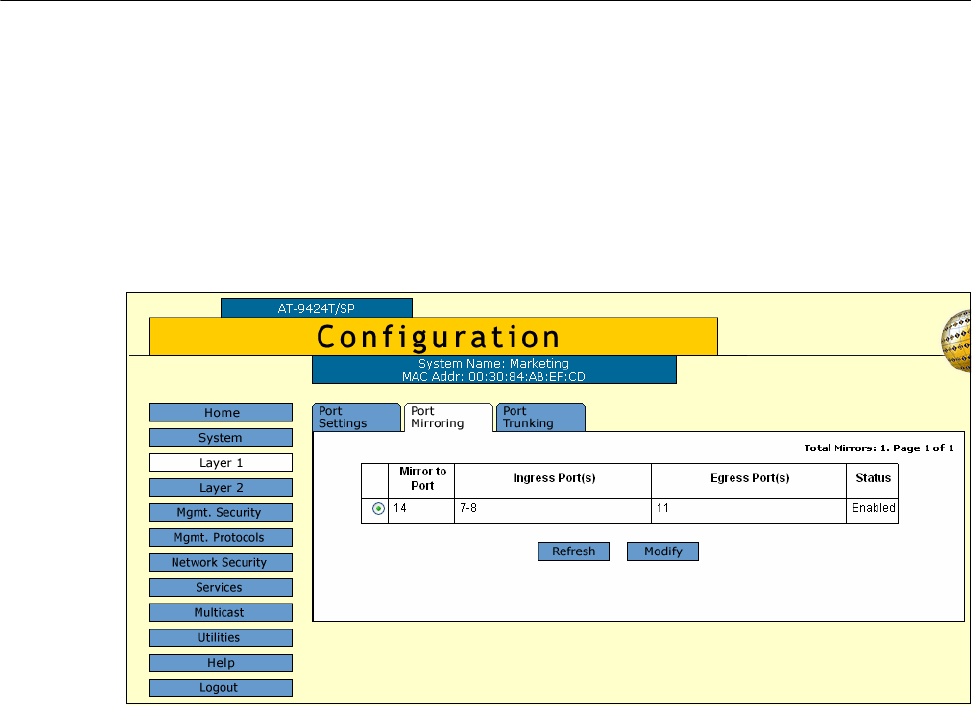

The Port Mirroring tab is shown in Figure 26.

Figure 26. Port Mirroring Tab (Configuration)

The tab displays a table with the following columns:

Mirror to Port

Specifies the destination port of the mirrored traffic. There can be only

one destination port. If this column contains a 0 (zero), there is no port

mirror.

Ingress Ports

Specifies the ports whose ingress traffic is to be mirrored to the

destination port.

Egress Ports

Specifies the ports whose egress traffic is to be mirrored to the

destination port.

Status

Specifies the status of the port mirror as either enabled or disabled.
