4. Click Modify.
The Modify Mirror page is shown in Figure 27.

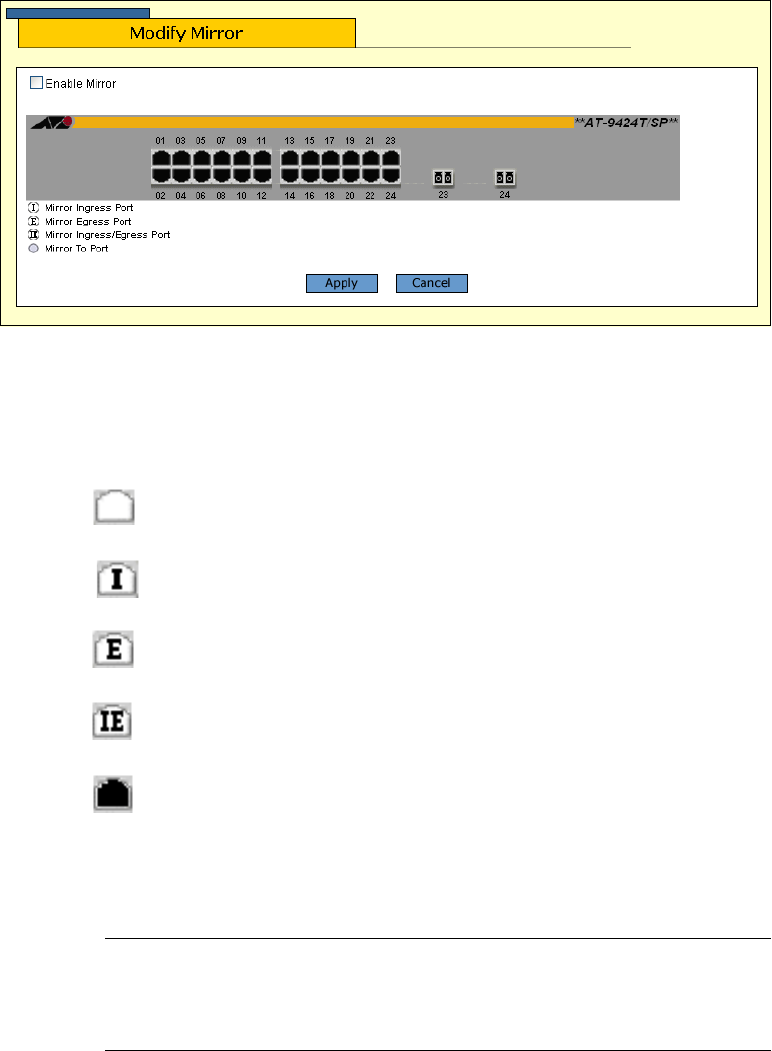

Figure 27. Modify Mirror Page
5. Click the ports to be in the port mirror. Clicking a port toggles it through
the following possible settings:
You can mirror one port, a few ports, or all of the ports on the switch,
with the exception, of course, of the destination port.
Note
To create a mirror port for the Denial of Service defenses, specify
only the destination port. The management software automatically
determines the source ports.
The destination (mirror) port. There can be only one
destination port.
A source port. The port’s ingress traffic is mirrored to the
destination port.
A source port. The port’s egress traffic is mirrored to the
destination port.
A source port. The port’s ingress and egress traffic is
mirrored to the destination port.
Not part of a port mirror.
