Chapter 18: SNMPv3

286 Section III: SNMPv3

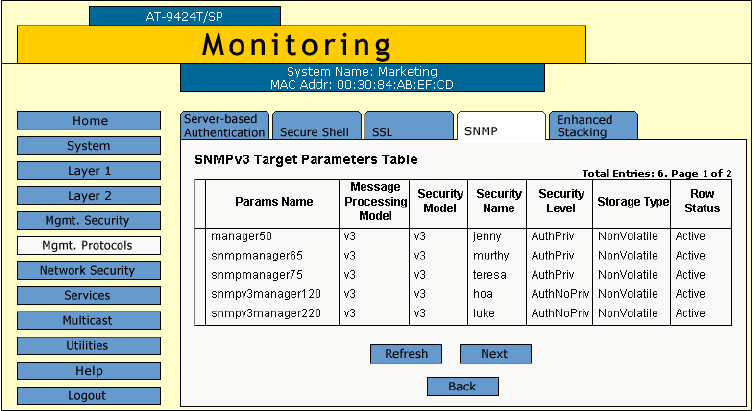

The SNMPv3 Target Parameters Table tab is shown in Figure 111.

Figure 111. SNMPv3 Target Parameters Table Tab (Monitoring)

Displaying

SNMPv3

Community

Table Entries

To display entries in the SNMPv3 Community Table, perform the following

procedure:

1. From the Home page, select Monitoring.

The Monitoring System page is displayed with the General tab

selected by default, as shown in Figure 9 on page 57.

2. Select the SNMP tab.

The SNMP tab is shown in Figure 104 on page 279.

3. In the SNMPv3 section, click the button next to View Community

Table and then click View at the bottom of the tab.
