AT-S63 Management Software Web Browser Interface User’s Guide
Section VII: Management Security 419

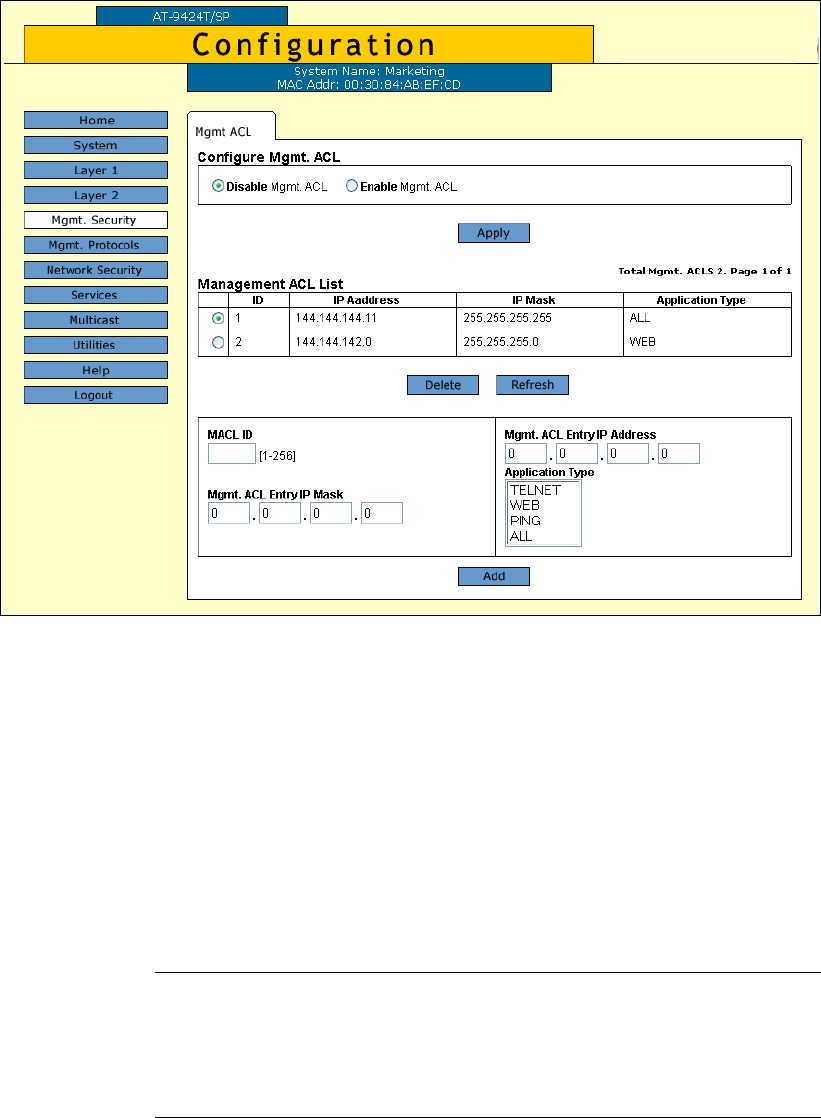

The tab is shown in Figure 168.
Figure 168. Mgmt. ACL Tab (Configuration)
The table in Management ACL List lists the existing ACEs on the
switch. The bottom portion is used to add entries, as explained in
“Creating an ACE” on page 420.
4. Click either Enable MGMT. ACL or Disable MGMT. ACL. The default
setting is disabled.
5. Click Apply.
A change to the status of the management ACL is immediately
activated on the switch.
Note
If you activate the feature before entering an access control entry
that specifies your management workstation, either by its IP address
or subnet, your web browser management session will end and you
will not be able to reestablish it.
6. To permanently save your changes, select the Save Config option in
the Configuration menu.
