AT-S63 Management Software Web Browser User’s Guide

Section I: Basic Operations 45

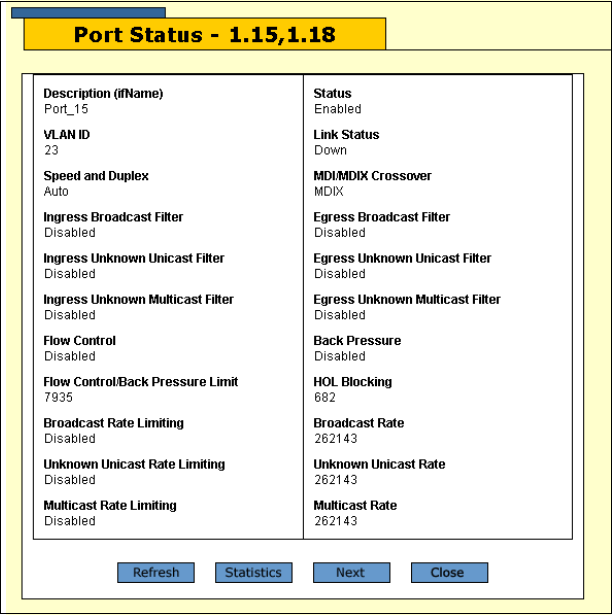

Figure 9. Port Status Page

If you selected more than one port, use the Next and Previous buttons

to toggle through the ports. The parameters are described in Table 5

on page 38.

7. To display the port statistics, click the Statistics button to display the

window in Figure 10.
