Chapter 2: Port Parameters

46 Section I: Basic Operations

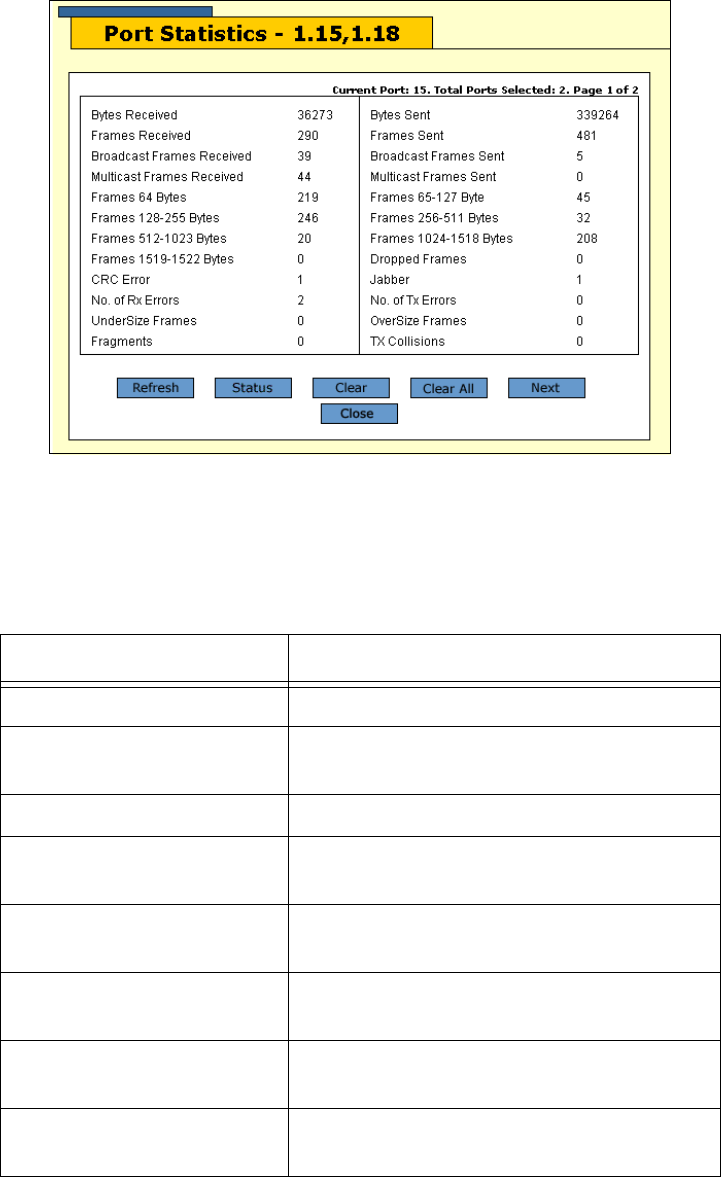

Figure 10. Port Statistics Page

If you selected more than one port, use the Next and Previous buttons

to toggle through the ports. The statistics are described in Table 6.

Table 6. Port Statistics

Statistic Definition

Bytes Received Number of bytes received on the port.

Bytes Sent Number of bytes transmitted from the

port.

Frames Received Number of frames received on the port.

Frames Sent Number of frames transmitted from the

port.

Broadcast Frames

Received

Number of broadcast frames received on

the port.

Broadcast Frames Sent Number of broadcast frames transmitted

from the port.

Multicast Frames Received Number of multicast frames received on

the port.

Multicast Frames Sent Number of multicast frames transmitted

from the port.
