Chapter 3: SNMPv1 and SNMPv2c

58 Section I: Basic Operations

Displaying the SNMPv1 and SNMPv2c Community Strings

To display the SNMPv1 and SNMPv2c community strings from an

operator management session:

1. From the Home page, click the Monitoring button.

2. From the Monitoring menu, click the Mgmt. Protocols button.

3. Select the SNMP tab to display the SNMP tab shown in Figure 14.

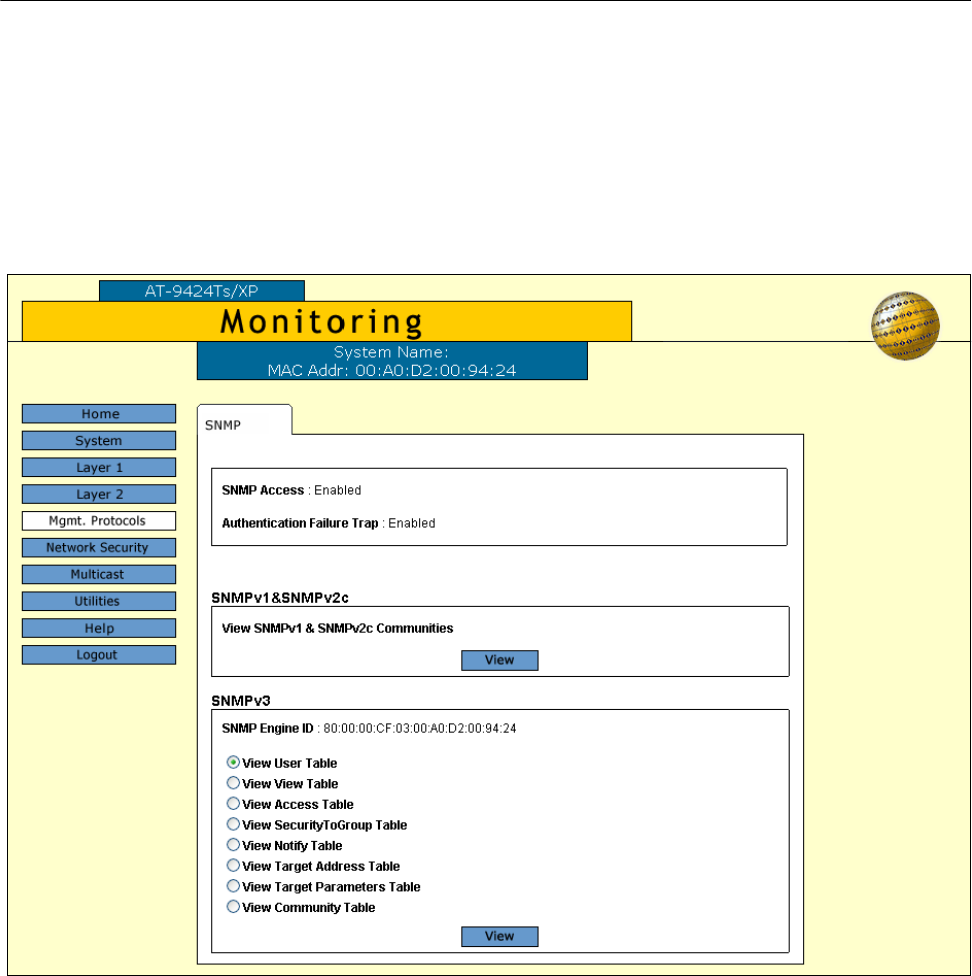

Figure 14. SNMP Tab (Monitoring)
