Chapter 4: MAC Address Table

64 Section I: Basic Operations

4. After selecting an option, click the View button. Figure 17 shows an

example of unicast MAC addresses.

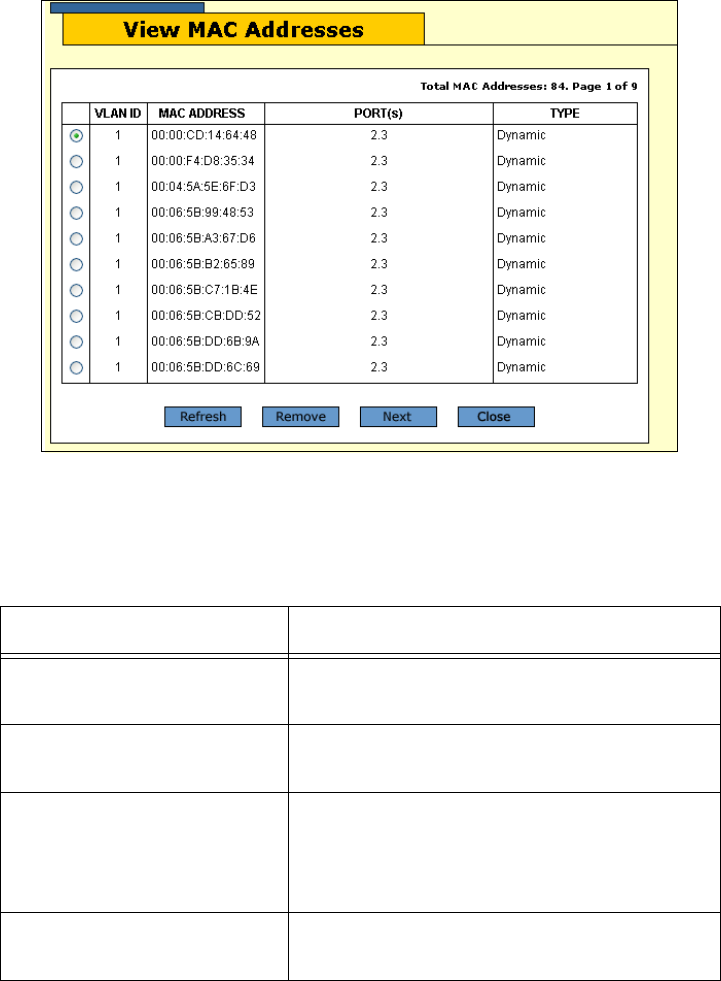

Figure 17. View MAC Addresses Window

The columns in the table are described in Table 10.

Table 10. View MAC Addresses Window

Column Definition

VLAN ID Displays the ID numbers of the VLANs of

the ports.

MAC Address Displays the static and dynamic MAC

addresses.

Port(s) Displays the ports where the addresses

were learned or assigned. The MAC

address with port “CPU” is the address of

the master switch.

Type Displays the address type as either static

or dynamic.
